FactSage SGTE Solution Database

List of systems and phases



The following tables summarise the contents of the FactSage SGTE Solution Database in terms of the systems and phases it includes. The listings assist in phase selection for particular calculations by providing



-          A LIST OF all the unary, binary, ternary and quaternary SYSTEMS WHICH HAVE BEEN ASSESSED



-          A LIST OF ALL ASSESSED phases IN EACH OF THE SYSTEMS



-          ASSiSTANCE WITH PHASE SELECTION



Phase diagrams have been calculated for all the binary systems using the assessed parameters contained in the database. The diagram for a particular binary system can be viewed by clicking on the system as listed in Table 2 below. The diagrams contain the names of the stable phases in each system and thus provide guidance in phase selection for calculations in higher-order systems.



The phases listed for the binary and higher order systems may be solution phases or stoichiometric intermetallic compound phases (ST).



Use of the FactSage module VIEW DATA with SGTE compound and solution databases allows inspection of a phase listing for a defined combination of elements.



When searching for a particular system in the present four lists, use alphabetical order of the elements.





=================================================================================



Table 1:  List of phases for UNARY systems



The metastable phases are marked by *.



 Ag

 LIQUID                 FCC_A1

 HCP_A3*              BCC_A2*               CUB_A13*



 Al

 LIQUID                 FCC_A1

 AL3NI2*                AL5FE4*                ALNI_B2*              BCC_A2*               CUB_A13*

 CBCC_A12*          HCP_A3*               TI3AL*                   TIAL*                     ALCU_THETA*



 Am

 LIQUID                 BCC_A2                DHCP                   FCC_A1



 As

 LIQUID                 RHOMBOHEDRAL_A7

 BCC_A2*              FCC_A1*               HCP_A3*



 Au

 LIQUID                 FCC_A1

 BCC_A2*              HCP_A3*               AUIN_ALPHA1*



 B

 LIQUID                 BETA_RHOMBO_B

 FCC_A1*              BCC_A2*



 Ba

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*



 Be

 LIQUID                 BCC_A2                HCP_A3

 FCC_A1*



 Bi

 LIQUID                 RHOMBOHEDRAL_A7

 BCC_A2*              BCT_A5*               HCP_A3*               FCC_A1*               TET_ALPHA1*

 TETRAGONAL_A6*



 C

 LIQUID                 GRAPHITE

 DIAMOND_A4*



 Ca

 LIQUID                 FCC_A1

 HCP_A3*              BCC_A2*



 Cd

 LIQUID                 HCP_A3



 Ce

 LIQUID                 BCC_A2                FCC_A1



 Co

 LIQUID                 FCC_A1                HCP_A3

 BCC_A2*              CBCC_A12*           CUB_A13*



 Cr

 LIQUID                 BCC_A2

 CBCC_A12*          CHI_A12*               CRSI2*                  CUB_A13*             FCC_A1*               HCP_A3*

 CR3SI*



 Cs

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*



 Cu

 LIQUID                 FCC_A1

 ALCU_ETA*          BCC_A2*               CUZN_EPS*          HCP_A3*               ALCU_EPSILON*



 Dy

 LIQUID                 HCP_A3                BCC_A2



 Er

 LIQUID                 HCP_A3



 Eu

 LIQUID                 BCC_A2



 Fe

 LIQUID                 BCC_A2                FCC_A1

 CBCC_A12*          CUB_A13*             HCP_A3*               AL4FE4*



 Ga

 LIQUID                 ORTHORHOMBIC_CMCA

 BCC_A2*              BCT_A5*               FCC_A1*               GA_GAMMA*        HCP_A3*

 TETRAGONAL_A6*



 Gd

 LIQUID                 BCC_A2                HCP_A3





Ge

 LIQUID                 DIAMOND_A4

 FCC_A1*              HCP_A3*               BCC_A2*



 Hf

 LIQUID                 BCC_A2                HCP_A3

 FCC_A1*



 Hg

 LIQUID                 RHOMBOHEDRAL_A10



 Ho

 LIQUID                 HCP_A3

 BCC_A2*



 In

 LIQUID                 TETRAGONAL_A6

 BCC_A2*              FCC_A1*               HCP_A3*               TET_ALPHA1*       AUIN_ALPHA1*



 Ir

 LIQUID                 FCC_A1

 HCP_A3*              BCC_A2*



 K

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*



 La

 LIQUID                 BCC_A2                DHCP                   FCC_A1



 Li

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*



 Lu

 LIQUID                 HCP_A3



 Mg

 LIQUID                 HCP_A3

 BCC_A2*              CBCC_A12*           FCC_A1*               ALMG_GAMMA*



 Mn

 LIQUID                 BCC_A2                CBCC_A12            CUB_A13              FCC_A1

 HCP_A3*



 Mo

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*               MC_ETA*



 N

 LIQUID                 BCC_A2



 Na

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*



 Nb

 LIQUID                 BCC_A2

 DHCP*                 FCC_A1*               HCP_A3*



 Nd

 LIQUID                 BCC_A2                DHCP



 Ni

 LIQUID                 FCC_A1

 AL3NI2*                ALNI_B2*               BCC_A2*               CBCC_A12*           CUB_A13*             HCP_A3*



 Np

 LIQUID                 BCC_A2                ORTHO_AC           TETRAG_AD



 O

 LIQUID(1/2O2)

 BCC_A2*              FCC_A1*



 Os

 LIQUID                 HCP_A3

 BCC_A2*              FCC_A1*



 P

 LIQUID                 RED_P

 BCC_A2*              FCC_A1*               WHITE_P*



 Pa

 LIQUID                 BCC_A2                BCT_A5



 Pb

 LIQUID                 FCC_A1

 BCC_A2*              HCP_A3*               TET_ALPHA1*       BCT_A5*               TETRAGONAL_A6*



 Pd

 LIQUID                 FCC_A1

 BCC_A2*              HCP_A3*



 Pr

 LIQUID                 BCC_A2                DHCP



 Pt

 LIQUID                 FCC_A1

 BCC_A2*              HCP_A3*



 Pu

 LIQUID                 BCC_A2                FCC_A1                ORTHORHOMBIC

 ALPHA_PU*         BETA_PU*             GAMMA_PU*        TETRAGONAL_A6*



 Rb

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*



 Re

 LIQUID                 HCP_A3

 BCC_A2*              FCC_A1*



 Rh

 LIQUID                 FCC_A1

 BCC_A2*



 Ru

 LIQUID                 HCP_A3

 BCC_A2*              FCC_A1*



 S

 LIQUID                 FCC_A1                FC_ORTHORHOMBIC                         MONOCLINIC        BCC_A2





Sb

 LIQUID                 RHOMBOHEDRAL_A7

 BCC_A2*              BCT_A5*               FCC_A1*               HCP_A3*               SB1SN1*



 Sc

 LIQUID                 BCC_A2                HCP_A3



 Se

 LIQUID                 HEXAGONAL_A8



 Si

 LIQUID                 DIAMOND_A4

 BCC_A2*              CBCC_A12*           CRSI2*                  CUB_A13*             FCC_A1*               HCP_A3*

 CR3SI*



 Sm

 LIQUID                 BCC_A2                RHOMBOHEDRAL_A7



 Sn

 LIQUID                 BCT_A5

 BCC_A2*              FCC_A1*               RHOMBOHEDRAL_A7*                      SB1SN1*

 DIAMOND_A4*     HCP_A3*



 Sr

 LIQUID                 FCC_A1

 HCP_A3*



 Ta

 LIQUID                 BCC_A2



 Tb

 LIQUID                 BCC_A2                HCP_A3



 Tc

 LIQUID                 HCP_A3

 BCC_A2*              FCC_A1*



 Te

 LIQUID                 HEXAGONAL_A8



 Th

 LIQUID                 BCC_A2                FCC_A1



 Ti

 LIQUID                 BCC_A2                HCP_A3

 CBCC_A12*          CUB_A13*             FCC_A1*               TI3AL*                   TIAL*



 Tl

 LIQUID                 BCC_A2                HCP_A3

 FCC_A1*



 Tm

 LIQUID                 HCP_A3



 U

 LIQUID                 BCC_A2                ORTHORHOMBIC_A20                       TETRAGONAL_U



 V

 LIQUID                 BCC_A2

 CUB_A13*            FCC_A1*               HCP_A3*               CBCC_A12*





W

 LIQUID                 BCC_A2

 FCC_A1*              HCP_A3*               MC_ETA*



 Y

 LIQUID                 BCC_A2                HCP_A3



 Yb

 LIQUID                 BCC_A2                FCC_A1



 Zn

 LIQUID                 HCP_ZN

 BCC_A2*              CUZN_EPS*          FCC_A1*



 Zr

 LIQUID                 BCC_A2

 HCP_A3*              FCC_A1*               OMEGA*



==================================================================================



Table 2:  List of phases for BINARY systems



Complete assessments are available for the systems listed below.

Click on the system name to view the stable phase diagram calculated with the stored parameters.



Phases accompanied by ST in parenthesis indicate a stoichiometric phase. These phases must be selected from the SGTE compound base.



(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

(J-option) the phase displays 2 miscibility gaps or special ordering effects and must be selected with the J-option.





Ag-Al

LIQUID                  BCC_A2                CUB_A13              FCC_A1                HCP_A3(I-option)



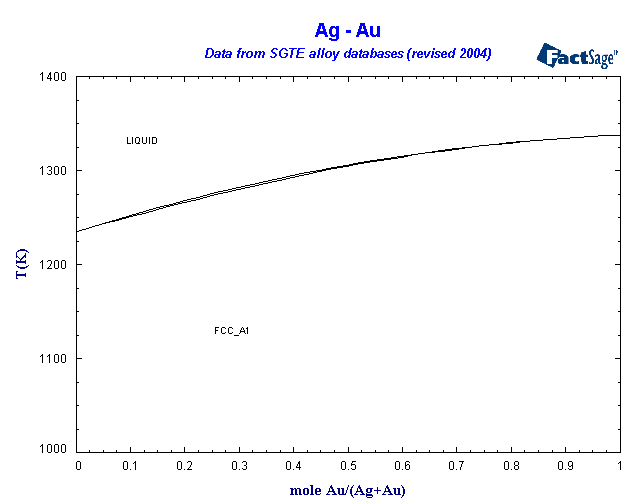

Ag-Au

LIQUID                  FCC_A1



Ag-Bi

LIQUID                  FCC_A1                Bi(S)



Ag-Cu

LIQUID                  FCC_A1(I-option)



Ag-Ge

LIQUID                  FCC_A1                Ge(S)



Ag-In

LIQUID                  FCC_A1                BCC_A2                HCP_A3(I-option) In(S)

AG2IN(ST)             AGIN2(ST)



Ag-Mg

LIQUID                  FCC_A1                BCC_A2                HCP_A3                AGMG3(ST)

AG3MG(ST)



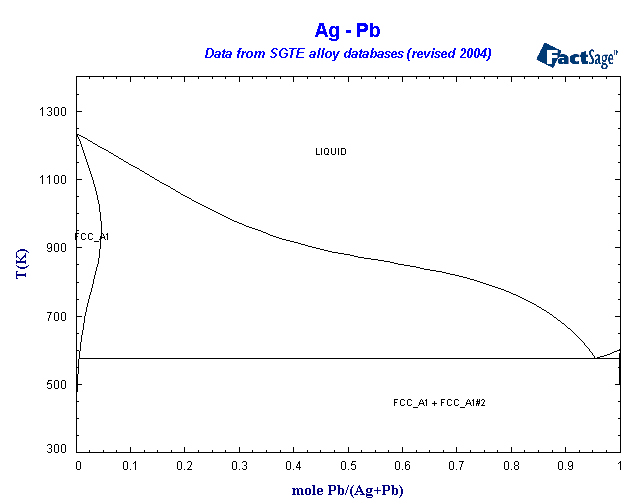

Ag-Pb

LIQUID                  FCC_A1(I-option)



Ag-Sb

LIQUID                  FCC_A1                HCP_A3                AGSB_ORTHO      Sb(S)

Ag-Si

LIQUID                  FCC_A1                Si(S)



Ag-Sn

LIQUID                  FCC_A1                HCP_A3                BCT_A5                 AG3SN(ST)



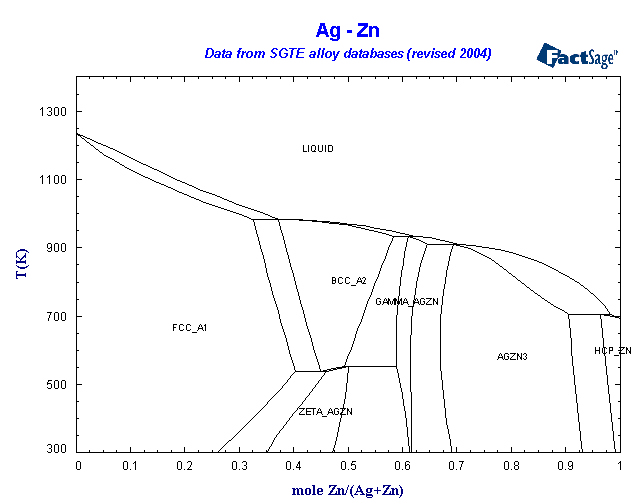

Ag-Zn

LIQUID                  FCC_A1                HCP_ZN                BCC_A2                ZETA_AGZN

AGZN3                  GAMMA_AGZN



Al-As

LIQUID                  ALAS(ST)              As(S)                    FCC_A1



Al-Au

LIQUID                  FCC_A1                AL2AU(ST)            ALAU(ST)              ALAU2(ST)

AL2AU5(ST)          ALAU4(ST)



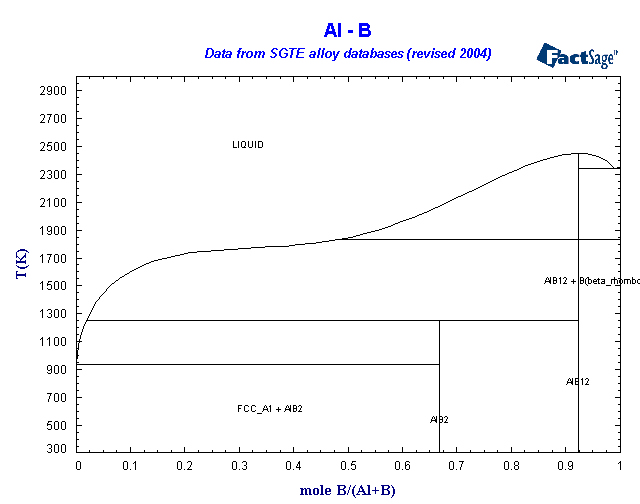

Al-B

LIQUID                  FCC_A1                B(S)                      ALB2(ST)               ALB12(ST)



Al-Bi

LIQUID(I-option)    FCC_A1                Bi(S)



Al-C

LIQUID                  FCC_A1                C(S)                      AL4C3(ST)



Al-Ca

LIQUID                  FCC_A1                BCC_A2                AL2CA(ST)            AL4CA(ST)



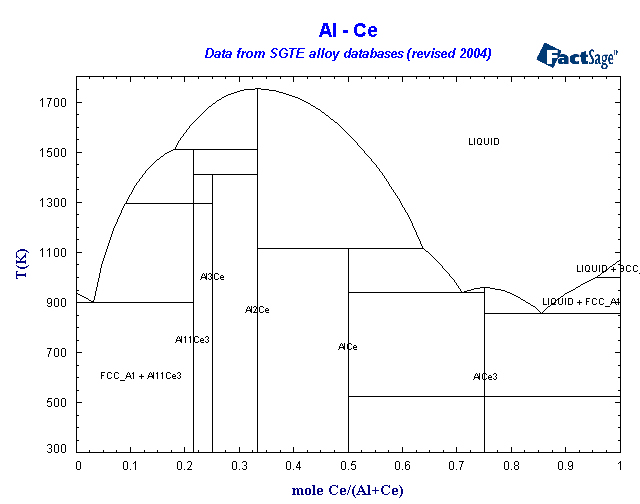

Al-Ce

LIQUID                  FCC_A1                BCC_A2                AL11CE3(ST)         AL3CE(ST)

AL2CE(ST)            ALCE(ST)              ALCE3(ST)



Al-Cr

LIQUID                  BCC_A2                FCC_A1                AL11CR2(ST)         AL13CR2(ST)         AL4CR(ST)

AL8CR5(ST)          AL9CR4(ST)           ALCR2(ST)



Al-Cu

LIQUID                  BCC_A2                FCC_A1                ALCU_ETA            ALCU_EPSILON

ALCU_THETA        GAMMA_D83         GAMMA_H            AL2CU3(ST)           AL9CU11(ST)



Al-Fe

LIQUID                  BCC_A2                FCC_A1                B2_BCC(I-option)  AL13FE4               AL5FE4

AL2FE(ST)            AL5FE2(ST)



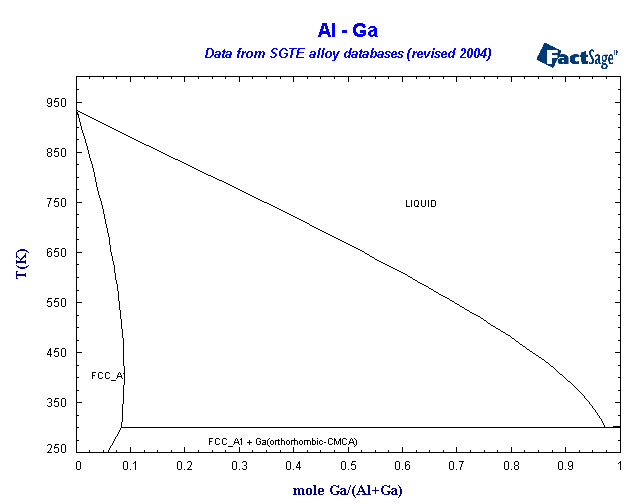

Al-Ga

LIQUID                  FCC_A1                Ga(S)



Al-Ge

LIQUID                  FCC_A1                Ge(S)



Al-Hg

LIQUID                  FCC_A1(ST)          Hg(L)



Al-In

LIQUID(I-option)    FCC_A1                In(S)



Al-La

LIQUID                  Al(S)                     La(S)                     La(S2)                   La(S3)

AL11LA3(ST)         AL3LA(ST)             AL53LA22(ST)       AL2LA(ST)             ALLA(ST)              ALLA3(ST)





Al-Li

LIQUID                  FCC_A1                BCC_A2                ALLI                      AL2LI3(ST)            AL4LI9(ST)



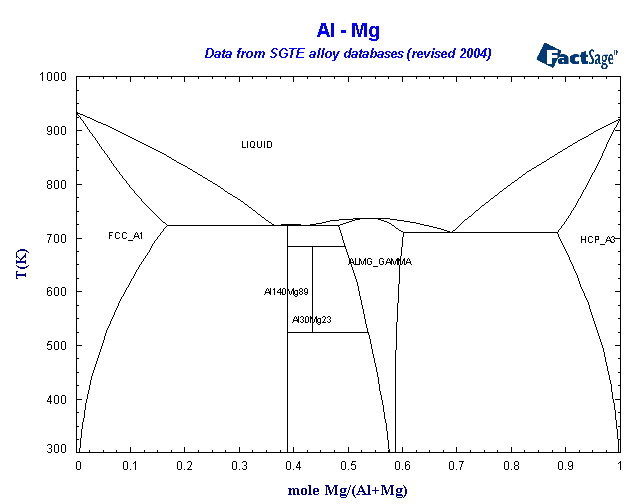

Al-Mg

LIQUID                  FCC_A1                HCP_A3                ALMG_GAMMA     AL140MG89(ST)

AL30MG23(ST)



Al-Mn

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                HCP_A3

AL8MN5_D810       AL11MN4(ST)        AL12MN(ST)          AL4MN(ST)            AL6MN(ST)



Al-Mo

LIQUID                  FCC_A1                BCC_A2                ALMO(I-option)     AL12MO(ST)

AL5MO(ST)           AL4MO(ST)            AL8MO3(ST)          AL63MO37(ST)      ALMO3(ST)



Al-N

LIQUID                  FCC_A1                ALN(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



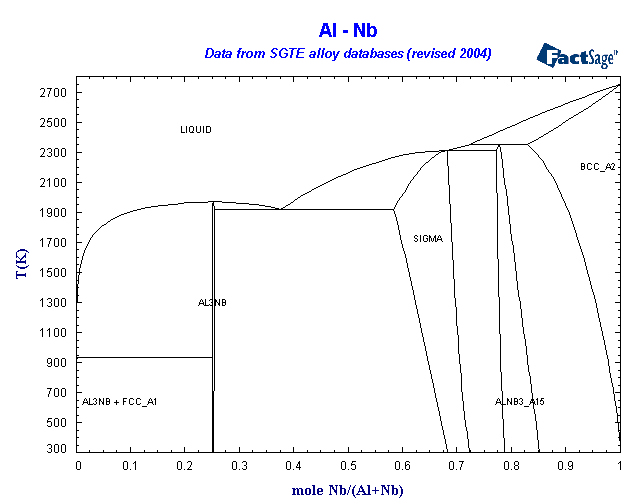

Al-Nb

LIQUID                  FCC_A1                BCC_A2                AL3NB                  SIGMA

AlNB3_A15



Al-Nd

LIQUID                  FCC_A1                BCC_A2                Nd(S)                    Al11Nd3(ST)

AL3ND(ST)            AL2ND(ST)            ALND(ST)              ALND2(ST)            ALND3(ST)



Al-Ni

LIQUID                  FCC_A1                L12_FCC(I-option) AL3NI2                  AL3NI5(ST)

ALNI(I-option)       AL3NI(ST)



Al-P

LIQUID                  P(S2)                    FCC_A1                ALP(ST)



Al-Pb

LIQUID(I-option)    FCC_A1(I-option)



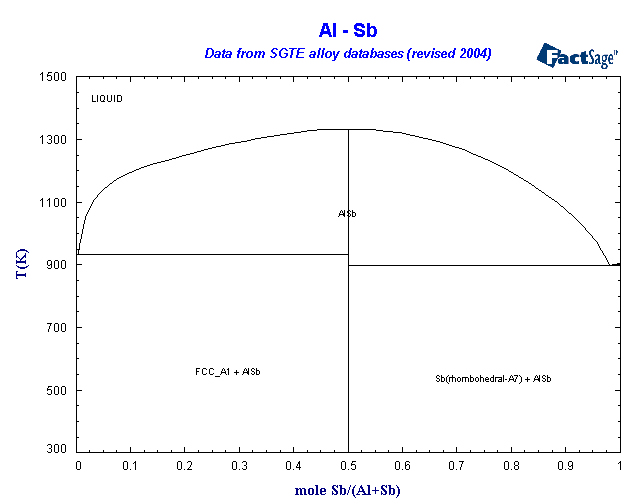

Al-Sb

LIQUID                  FCC_A1                Sb(S)                    ALSB(ST)



Al-Si

LIQUID                  FCC_A1                Si(S)



Al-Sn

LIQUID                  FCC_A1                BCT_A5



Al-Ta

LIQUID                  FCC_A1                BCC_A2                ALTA_SIGMA        AL3TA(ST)

AL69TA39(ST)       AL3TA2(ST)           AL7TA5(ST)           ALTA(ST)



Al-Ti

LIQUID                  BCC_A2                FCC_A1                HCP_A3                AL3M_DO22

ALTI(I-option)        ALM_D019(I-option)                           Al17TI8(ST)            AL2TI(ST)



Al-V

LIQUID                  FCC_A1                BCC_A2                AL10V(ST)             AL7V(ST)

AL23V4(ST)           AL3V(ST)               AL8V5(ST)



Al-W

LIQUID                  FCC_A1                BCC_A2                AL12W(ST)            AL5W(ST)

AL4W(ST)             AL77W23(ST)        AL7W3(ST)            AL2W(ST)





Al-Y

LIQUID                  FCC_A1                BCC_A2                HCP_A3                AL3Y(ST)

AL2Y(ST)              ALY(ST)                AL2Y3(ST)             AL3Y5(ST)             ALY2(ST)



Al-Zn

LIQUID                  FCC_A1(I-option)  HCP_ZN



Al-Zr

LIQUID                  FCC_A1                BCC_A2                HCP_A3                AL3ZR(ST)

AL2ZR(ST)             AL3ZR2(ST)           ALZR(ST)              AL4ZR5(ST)           AL2ZR3(ST)

AL3ZR5(ST)           ALZR2(ST)             ALZR3(ST)



As-Au

LIQUID                  FCC_A1                As(S)



As-Ga

LIQUID                  As(S)                    Ga(S)

ASGA(ST)



As-In

LIQUID                  As(S)                    In(S)                      ASIN(ST)



As-P

LIQUID                  RHOMBOHEDRAL_A7                        RED_P                  ASP



As-Pb

LIQUID                  FCC_A1                RHOMBOHEDRAL_A7



As-Sb

LIQUID                  RHOMBOHEDRAL_A7(I-option)



Au-Bi

LIQUID                  FCC_A1                Bi(S)                     AU2BI(ST)



Au-C

LIQUID                  FCC_A1                C(S)



Au-Cu

LIQUID                  FCC_A1(AU,CU)(I-option)                   ORDER(J-option)



Au-Ge

LIQUID                  FCC_A1                Ge(S)



Au-In

LIQUID                  FCC_A1                In(S)                      HCP_A3                AUIN_ALPHA1       AU3IN(ST)

AU7IN2(ST)           AU7IN3(ST)            AU5IN3(ST)           AUIN(ST)               AUIN2(ST)



Au-Pb

LIQUID                  FCC_A1                AU2PB(ST)            AUPB2(ST)            AUPB3(ST)



Au-Sb

LIQUID                  FCC_A1                Sb(S)                    AUSB2(ST)



Au-Si

LIQUID                  FCC_A1                Si(S)



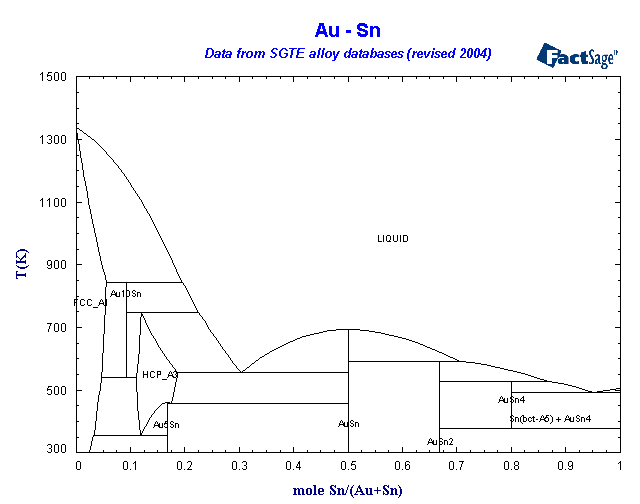

Au-Sn

LIQUID                  FCC_A1                HCP_A3                Sn(S)                    AU10SN(ST)

AUSN(ST)             AUSN2(ST)            AUSN4(ST)            AU5SN(ST)





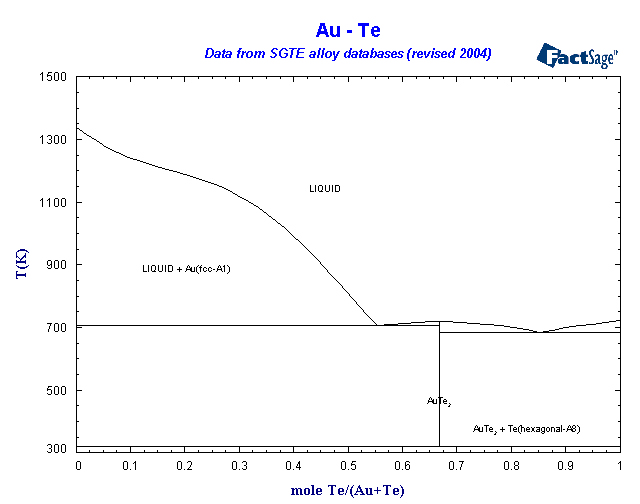

Au-Te

LIQUID                  FCC_A1(ST)          Te(S)                     AUTE2(ST)



Au-Tl

LIQUID                  BCC_A2                FCC_A1                HCP_A3



B-C

LIQUID                  BETA_RHOMBO_B                            GRAPHITE            B4C

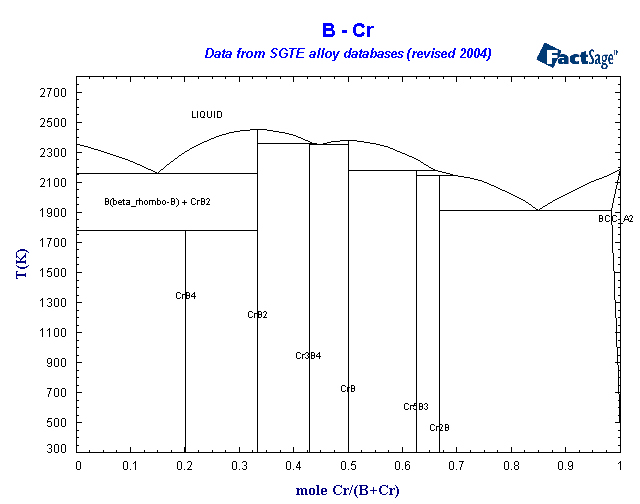

B-Cr

LIQUID                  B(S)                      BCC_A2                CRB4(ST)              CRB2(ST)

CR3B4(ST)            CRB(ST)                CR5B3(ST)            CR2B(ST)



B-Fe

LIQUID                  B(S)                      BCC_A2                FCC_A1

BFE(ST)                BFE2(ST)



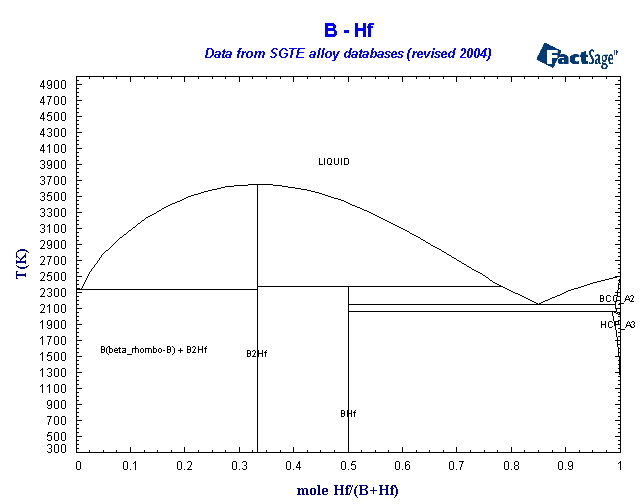

B-Hf

LIQUID                  B(S)                      BCC_A2                HCP_A3

B2HF(ST)              BHF(ST)



B-Mo

LIQUID                  B(S)                      BCC_A2                MOB4(ST)

B2MO(ST)             B5MO3(ST)            MOB(ST)               BMO2(ST)



B-N

LIQUID                  B(S)                      BN(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



B-Nd

LIQUID                  B(S)                      Nd(S)                    Nd(S2)                   NDB66(ST)            NDB6(ST)

NDB4(ST)              ND2B5(ST)



B-Ni

LIQUID                  B(S)                      FCC_A1                NIB(ST)

NI4B3(ST)              BNI2(ST)                NI3B(ST)



B-Si

LIQUID                  BETA_RHOMBO_B                            Si(S)

B_NSI                   B6SI                      B3SI

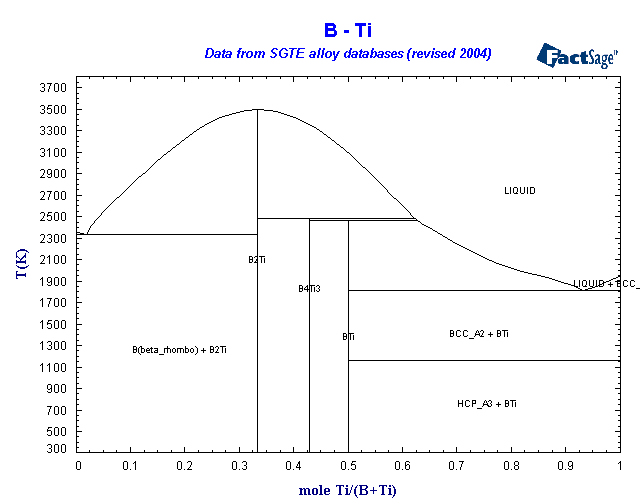

B-Ti

LIQUID                  B(S)                      BCC_A2                HCP_A3                B2TI(ST)

B4TI3(ST)              BTI(ST)



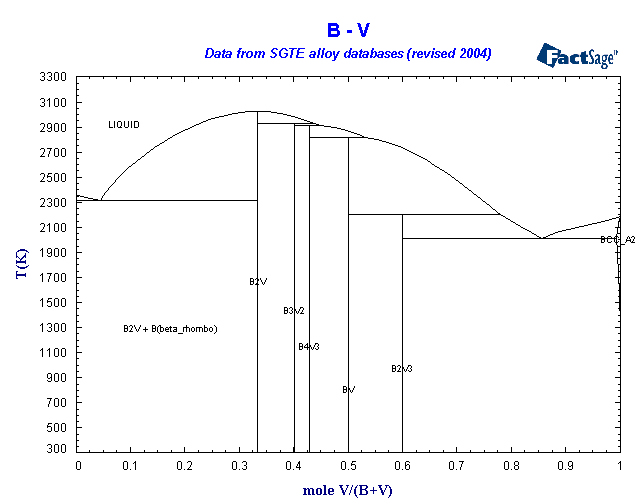

B-V

LIQUID                  B(S)                      BCC_A2                B2V(ST)                B3V2(ST)

B4V3(ST)              BV(ST)                  B2V3(ST)



B-W

LIQUID                  B(S)                      BCC_A2                W2B5                    WB_BETA

B9W2(ST)             BW2(ST)



Ba-Cu

LIQUID                  FCC_A1                BCC_A2                BACU(ST)              BACU13(ST)



Bi-Cu

LIQUID                  FCC_A1                Bi(S)



Bi-Ga

LIQUID(I-option)    Bi(S)                     Ga(S)



Bi-Ge

LIQUID                  RHOMBOHEDRAL_A7                        DIAMOND_A4



Bi-Hg

LIQUID                  Bi(S)



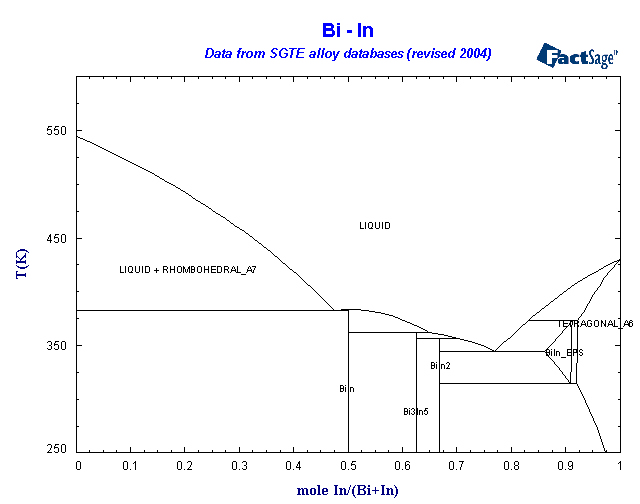

Bi-In

LIQUID                  RHOMBOHEDRAL_A7                        TETRAGONAL_A6

BIIN_EPS              BIIN(ST)                 BI3IN5(ST)             BIIN2(ST)



Bi-K

LIQUID                  Bi(S)                     BCC_A2                BI2K(ST)                BI2K3(ST)              BI4K5(ST)

BIK3(ST)



Bi-Pb

LIQUID                  FCC_A1                RHOMBOHEDRAL_A7                        HCP_A3



Bi-Sb

LIQUID                  RHOMBOHEDRAL_A7(I-option)



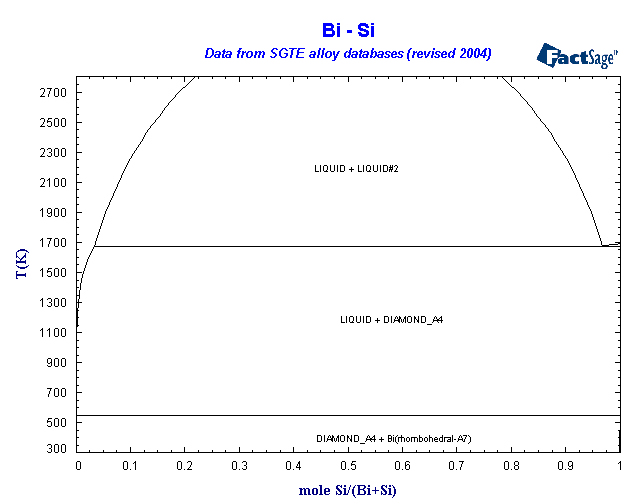

Bi-Si

LIQUID(I-option)    Bi(S)                     Si(S)



Bi-Sn

LIQUID                  BCT_A5                 RHOMBOHEDRAL_A7                        Sn(S)

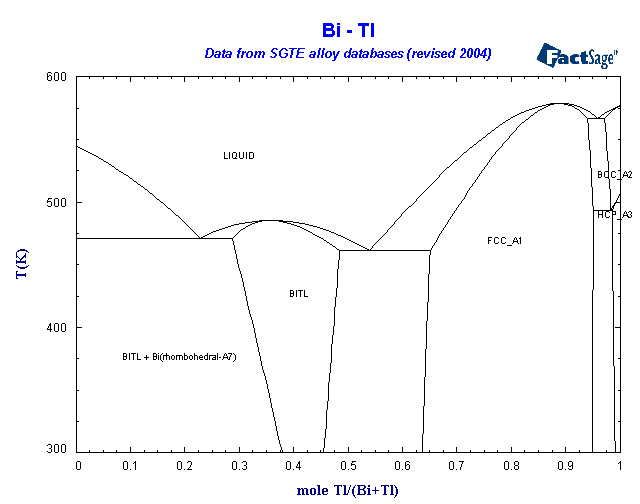

Bi-Tl

LIQUID                  Bi(S)                     BCC_A2                HCP_A3                FCC_A1

BITL



Bi-Zn

LIQUID(I-option)    Zn(S)                     RHOMBOHEDRAL_A7



C-Co

LIQUID                  FCC_A1                HCP_A3                C(S)



C-Cr

LIQUID                  BCC_A2                C(S)                      C2CR3(ST)            C3CR7(ST)

C6CR23(ST)



C-Cu

LIQUID                  FCC_A1                C(S)



C-Fe

LIQUID                  BCC_A2                FCC_A1                C(S)



C-Hf

LIQUID                  C(S)                      HCP_A3                BCC_A2                FCC_A1



C-Mn

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                HCP_A3

C(S)                      MN7C3(ST)            MN5C2(ST)            MN3C(ST)              MN20MN3C6(ST)



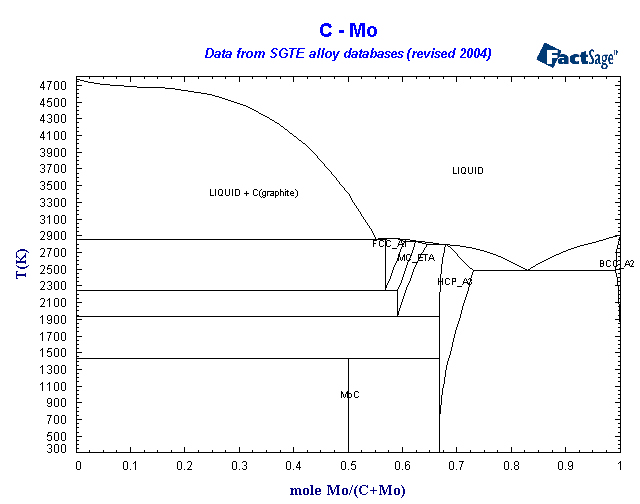

C-Mo

LIQUID                  C(S)                      BCC_A2                HCP_A3                FCC_A1                MC_ETA

MOC(ST)



C-Nb

LIQUID                  BCC_A2                FCC_A1                HCP_A3                C(S)



C-Ni

LIQUID                  FCC_A1                C(S)



C-P

LIQUID                  C(S)                      P(S2)



C-Pb

LIQUID                  FCC_A1                C(S)



C-Si

LIQUID                  DIAMOND_A4        C(S)                      CSI(ST)



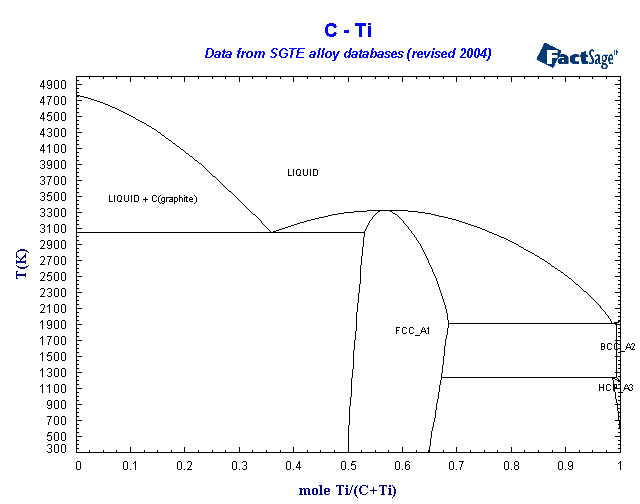

C-Ti

LIQUID                  BCC_A2                FCC_A1                HCP_A3                C(S)



C-V

LIQUID                  BCC_A2                C(S)                      FCC_A1                HCP_A3                V3C2(ST)



C-W

LIQUID                  C(S)                      BCC_A2                FCC_A1                HCP_A3                WC(ST)



Ca-Cu

LIQUID                  FCC_A1                BCC_A2                CA2CU(ST)            CACU(ST)             CACU5(ST)



Ca-Mg

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CAMG2(ST)



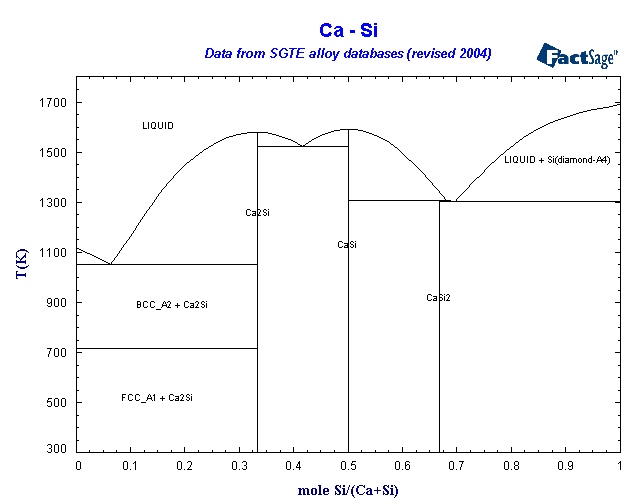

Ca-Si

LIQUID                  BCC_A2                FCC_A1                Si(S)                     CA2SI(ST)

CASI(ST)               CASI2(ST)



Cd-Ga

LIQUID(I-option)    Ga(S)                    HCP_A3



Cd-Hg

LIQUID                  HCP_A3                TETRAGONAL_A6



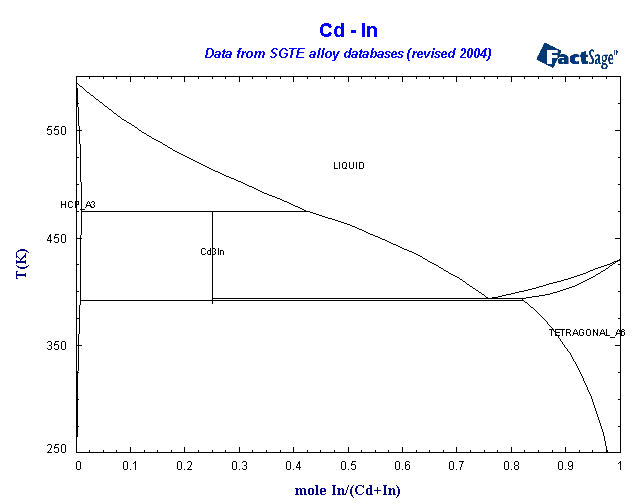

Cd-In

LIQUID                  HCP_A3                TETRAGONAL_A6 CD3IN(ST)



Cd-Pb

LIQUID                  HCP_A3                FCC_A1



Cd-Sb

LIQUID                  HCP_A3                Sb(S)                    CDSB(ST)



Cd-Zn

LIQUID                  HCP_A3                HCP_ZN (I-option)



Ce-Co

LIQUID                  FCC_A1                BCC_A2                CO11CE24(ST)      CO2CE(ST)           CO3CE(ST)

CO7CE2(ST)          CO19CE5(ST)        CO5CE(ST)           CO17CE2(ST)



Ce-Cu

LIQUID                  FCC_A1                BCC_A2                CUCE(ST)              CU2CE(ST)            CU4CE(ST)

CU5CE(ST)            CU6CE(ST)



Ce-Mg

LIQUID                  FCC_A1                BCC_A2                Mg(S)                    CEMG(ST)

CEMG2(ST)           CEMG3(ST)           CE5MG41(ST)       CE2MG17(ST)        CEMG12(ST)



Co-Cr

LIQUID                  BCC_A2                FCC_A1(I-option)  HCP_A3(I-option)  SIGMA



Co-Cu

LIQUID                  FCC_A1(I-option)  HCP_A3

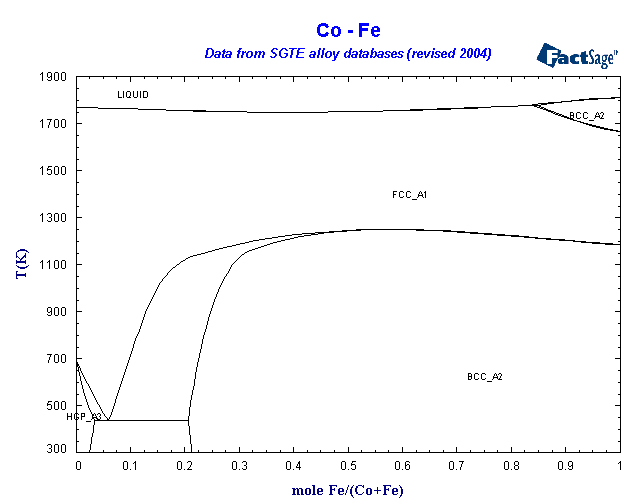

Co-Fe

LIQUID                  BCC_A2                FCC_A1                HCP_A3



Co-Mn

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1(J-option) HCP_A3



Co-N

LIQUID                  FCC_A1                HCP_A3                CO4N(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



Co-Nb

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CONB_LAMBDA

CONB_MU            CO7NB2(ST)          CO3NB(ST)           CO16NB9(ST)

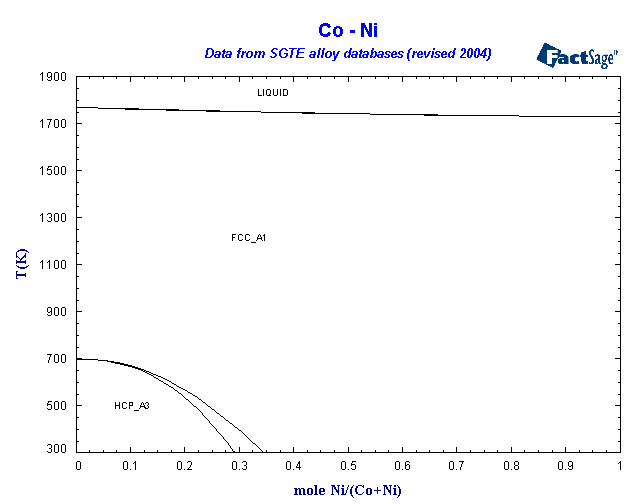

Co-Ni

LIQUID                  FCC_A1                HCP_A3



Co-Sm

LIQUID                  FCC_A1                HCP_A3                BCC_A2                Sm(S)

CO17SM2(ST)       CO5SM(ST)           CO7SM2(ST)         CO3SM(ST)           CO2SM(ST)

CO4SM9(ST)         COSM3(ST)



Co-Ta

LIQUID                  FCC_A1                BCC_A2                HCP_A3                LAVES_C14

LAVES_C36          LAVES_C15          MU_PHASE          CO7TA2(ST)          COTA2(ST)



Co-W

LIQUID                  BCC_ A2               HCP_A3                FCC_A1(I-option)  MU_PHASE          CO3W(ST)



Cr-Cu

LIQUID                  BCC_A2                FCC_A1



Cr-Fe

LIQUID                  BCC_A2(I-option)  FCC_A1                SIGMA



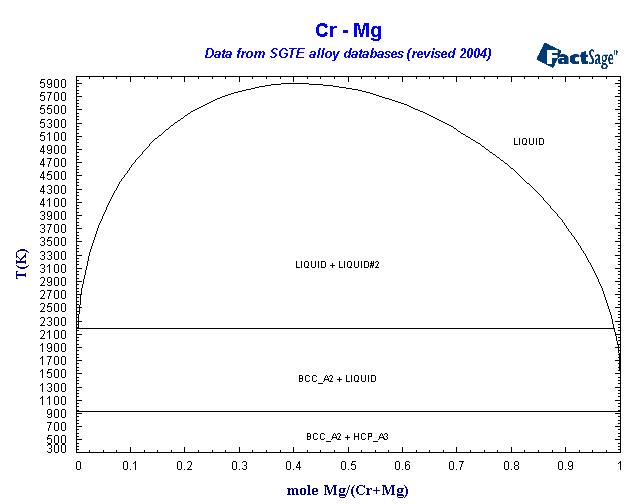

Cr-Mg

LIQUID(I-option)    BCC_A2                HCP_A3



Cr-Mn

LIQUID                  BCC_A2                CBCC_A12            FCC_A1                CUB_A13

HIGH_SIGMA        SIGMA                  CR3MN5(ST)



Cr-Mo

LIQUID                  BCC_A2(I-option)



Cr-N

LIQUID                  BCC_A2                FCC_A1                HCP_A3

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



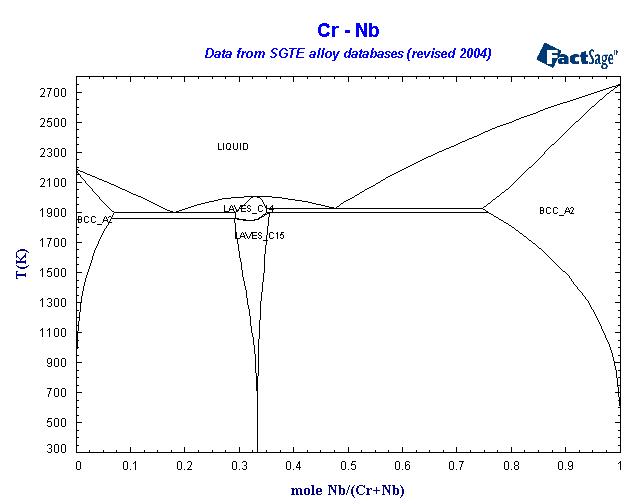

Cr-Nb

LIQUID                  BCC_A2(I-option)  LAVES_C14          LAVES_C15



Cr-Ni

LIQUID                  BCC_A2                FCC_A1



Cr-P – data apply up to 0.4 mol fraction P only

LIQUID                  BCC_A2                CR2P(ST)              CR3P(ST)





Cr-Si

LIQUID                  BCC_A2                Si(S)                     CR3SI_A15            CRSI2                   CR5SI3(ST)

CRSI(ST)



Cr-Ta

LIQUID                  BCC_A2(I-option)  LAVES_C14          LAVES_C15



Cr-Ti

LIQUID                  BCC_A2                HCP_A3                LAVES_C14          LAVES_C15



Cr-V

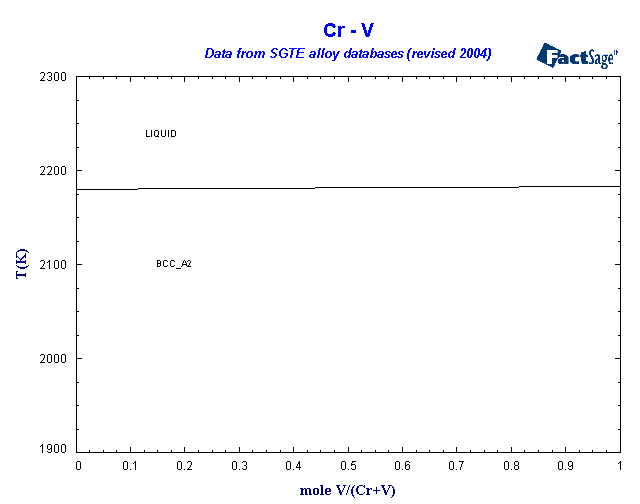

LIQUID                  BCC_A2



Cr-W

LIQUID                  BCC_A2(I-option)



Cr-Zn

LIQUID                  BCC_A2                HCP_ZN                CRZN13(ST)           CRZN17(ST)



Cr-Zr

LIQUID                  BCC_A2                HCP_A3                LAVES_C14          LAVES_C15

LAVES_C36

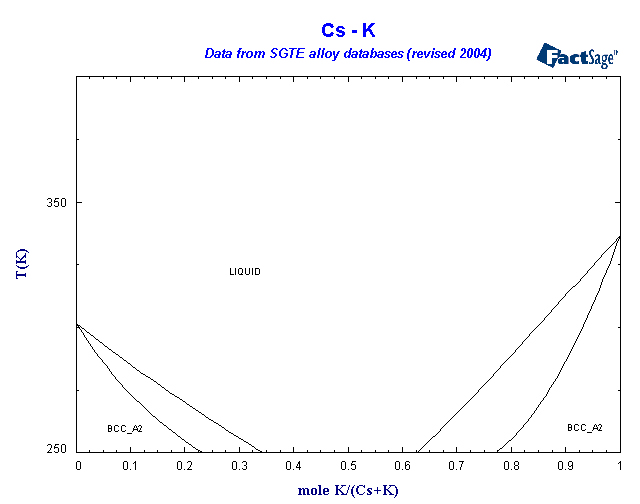

Cs-K

LIQUID                  BCC_A2



Cs-Na

LIQUID                  BCC_A2                CSNA2(ST)



Cs-Rb

LIQUID                  BCC_A2



Cu-Fe

LIQUID                  BCC_A2                FCC_A1(I-option)



Cu-Ge

LIQUID                  FCC_A1                HCP_A3                Ge(S)                    CU3GE(ST)



Cu-In

LIQUID                  FCC_A1                In(S)                      CU4IN(ST)             CU7IN3(ST)           CU2IN(ST)

CU11IN9(ST)



Cu-Li

LIQUID                  FCC_A1                BCC_A2



Cu-Mg

LIQUID                  FCC_A1                HCP_A3                LAVES_C15          CUMG2(ST)



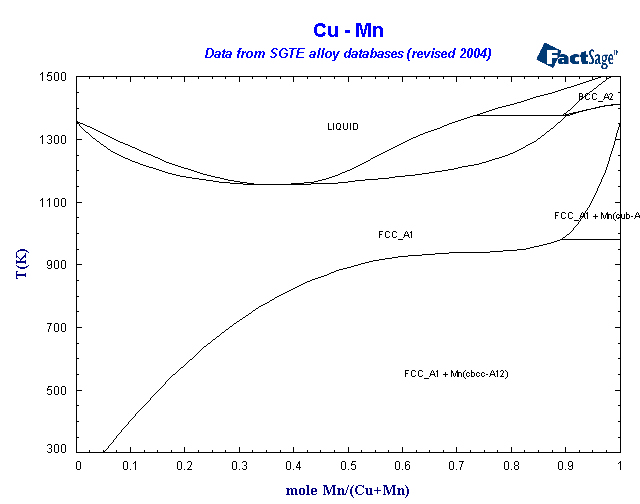

Cu-Mn

LIQUID                  FCC_A1                BCC_A2                Mn(S)                    Mn(S2)



Cu-Nb

LIQUID                  BCC_A2                FCC_A1



Cu-Nd

LIQUID                  Cu(S)                    BCC_A2                Nd(S)                    CU6ND(ST)

CU5ND(ST)            CU4ND(ST)            CU2ND(ST)            CUND(ST)



Cu-Ni

LIQUID                  FCC_A1(I-option)





Cu-P – data apply up to 0.26 mol fraction P only

LIQUID                  FCC_A1                RED_P(ST)            CU3P(ST)

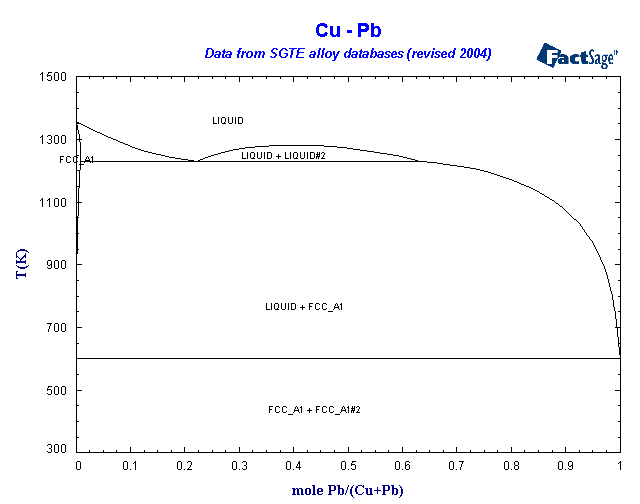

Cu-Pb

LIQUID(I-option)    FCC_A1(I-option)





Cu-Pr

LIQUID                  Cu(S)                    BCC_A2                Pr(S)                     CU6PR(ST)

CU5PR(ST)            CU4PR(ST)            CU2PR(ST)            CUPR(ST)



Cu-Sb

LIQUID                  FCC_A1                Sb(S)                    CUSB(J-option)     CU11SB2(ST)

CU9SB2(ST)          CU73SB20(ST)       CU2SB(ST)



Cu-Si

LIQUID                  FCC_A1                Si(S)                     BCC_A2                HCP_A3

CU15SI4(ST)          CU19SI6(ST)          CU33SI7(ST)          CU9SI2(ST)



Cu-Sm

LIQUID                  Cu(S)                    BCC_A2                Sm(S)

CU6SM(ST)           CU5SM(ST)           CU4SM(ST)           CU2SM(ST)           CUSM(ST)



Cu-Sn

LIQUID                  FCC_A1                Sn(S2)                  BCC_A2                GAMMA_D03

CU4SN(ST)            CU10SN3(ST)        CU3SN(ST)            CU6SN5(ST)



Cu-Sr

LIQUID                  FCC_A1                BCC_A2                CU5SR(ST)            CUSR(ST)



Cu-Ti

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CU4TI

CUTI                     CU2TI(ST)              CU3TI2(ST)            CU4TI3(ST)            CUTI2(ST)



Cu-Tl

LIQUID(I-option)    BCC_A2                FCC_A1                HCP_A3



Cu-V

LIQUID(I-option)    BCC_A2                FCC_A1



Cu-Y

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CU6Y

CU4Y(ST)              CU7Y2(ST)            CU2Y(ST)              CUY(ST)



Cu-Zn

LIQUID                  FCC_A1                HCP_ZN                HCP_A3                BCC_A2

B2_BCC(I-option)  CUZN_GAMMA



Cu-Zr

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CU5ZR(ST)

CU51ZR14(ST)       CU8ZR3(ST)           CU10ZR7(ST)         CUZR(ST)              CUZR2(ST)



Dy-Fe

LIQUID                  Fe(S2)                   BCC_A2                HCP_A3                FE2DY(ST)

FEDY(ST)              FE23DY6(ST)         FE17DY2(ST)



Dy-Tb

LIQUID                  BCC_A2                HCP_A3



Fe-Gd

LIQUID                  Fe(S2)                   BCC_A2                HCP_A3                FE17GD2(ST)

Fe23GD6(ST)         FE3GD(ST)            FE2GD(ST)



Fe-Mg

LIQUID(I-option)    FCC_A1                BCC_A2                HCP_A3



Fe-Mn

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1



Fe-Mo

LIQUID                  BCC_A2                FCC_A1                MU_PHASE           R_PHASE             SIGMA

FE2MO(ST)



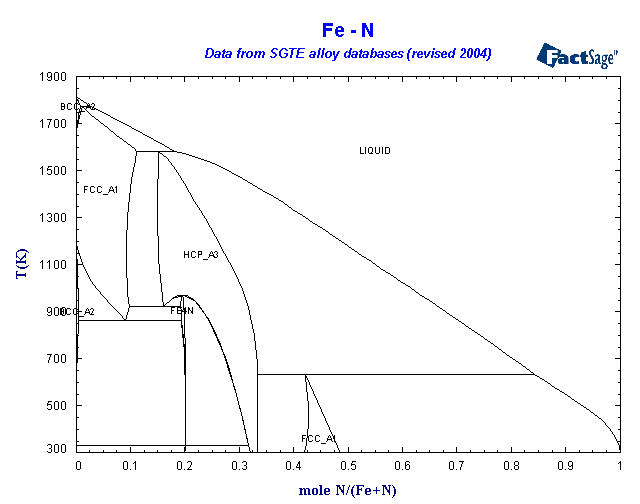

Fe-N

LIQUID                  BCC_A2                FCC_A1                HCP_A3                FE4N

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



Fe-Nb

LIQUID                  BCC_A2                FCC_A1                MU_PHASE           FE2NB(ST)



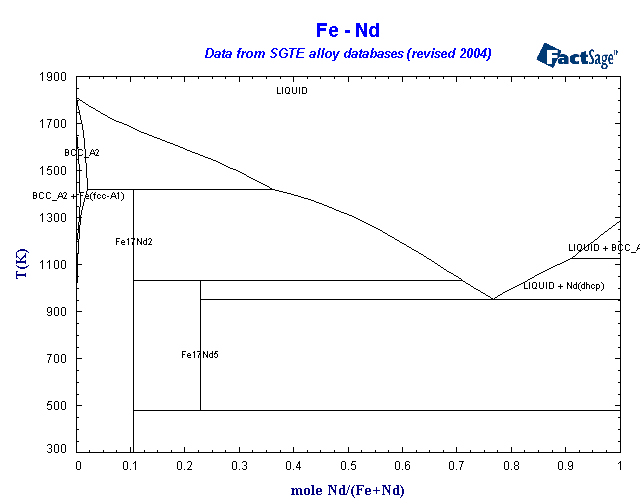

Fe-Nd

LIQUID                  FCC_A1                BCC_A2                Nd(S)                    FE17ND2(ST)

FE17ND5(ST)



Fe-Ni

LIQUID                  BCC_A2                FCC_A1                L12_FCC(I-option)

(For correct calculation of the Nishizawa horn, use the J-option for both FCC_A1 and L12_FCC.)



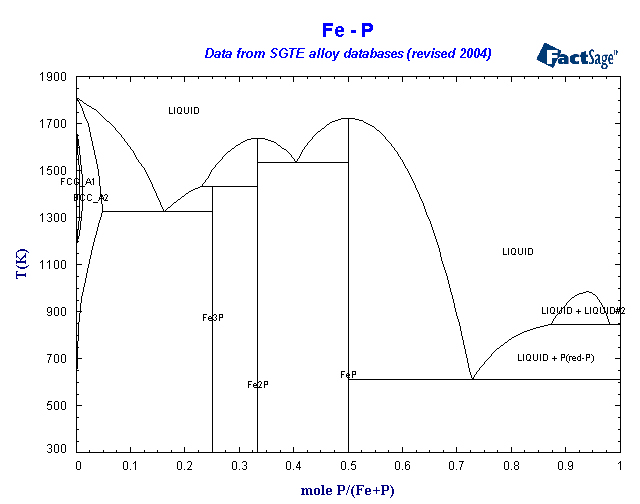

Fe-P

LIQUID(I-option)    BCC_A2                FCC_A1                P(S2)                    FE2P(ST)              FE3P(ST)

FEP(ST)



Fe-Pb

LIQUID(I-option)    FCC_A1                BCC_A2



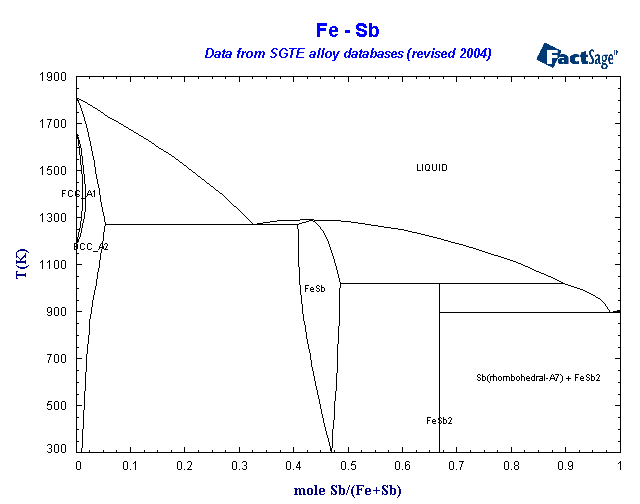

Fe-Sb

LIQUID                  FCC_A1                BCC_A2                Sb(S)                    FESB                    FESB2(ST)



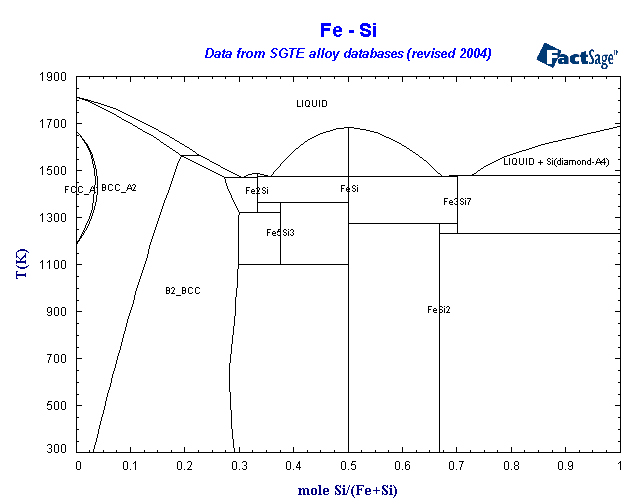

Fe-Si

LIQUID                  BCC_A2                FCC_A1                B2_BCC(I-option)  Si(S)

FESI(ST)               FE2SI(ST)              FE5SI3(ST)            FESI2(ST)              FE3SI7(ST)



Fe-Sn

LIQUID(I-option)    FCC_A1                BCC_A2                BCT_A5(ST)           FE5SN3(ST)

FE3SN2(ST)          FESN(ST)              FESN2(ST)



Fe-Tb

LIQUID                  Fe(S2)                   BCC_A2                HCP_A3                FE17TB2(ST)

FE23TB6(ST)         FE3TB(ST)             FE2TB(ST)



Fe-Ti

LIQUID                  BCC_A2                HCP_A3                FCC_A1                LAVES_C14

FETI(ST)



Fe-U

LIQUID                  FCC_A1                BCC_A2                TETRAGONAL_U

ORTHORHOMBIC_CMCA                   FE2U                    FEU6



Fe-V

LIQUID                  BCC_A2                FCC_A1                SIGMA



Fe-W

LIQUID                  BCC_A2(I-option)  FCC_A1                MU_PHASE           FE2W(ST)



Fe-Zn

LIQUID                  FCC_A1                BCC_A2                HCP_ZN                D82_FEZN_GAMMA

FEZN4                  FEZN_DELTA        FEZN_ZETA



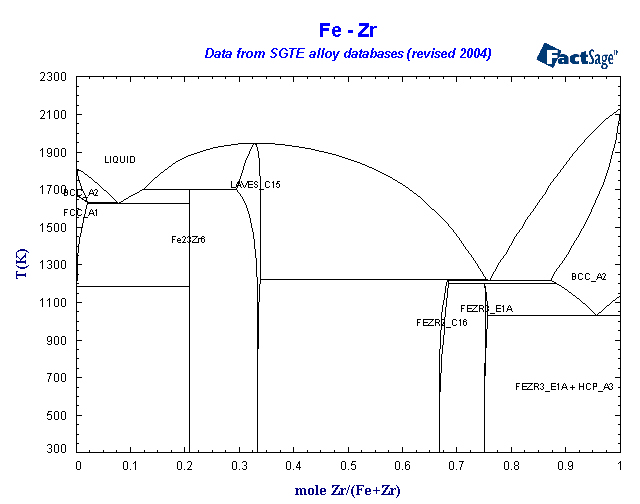

Fe-Zr

LIQUID                  FCC_A1                BCC_A2                HCP_A3                LAVES_C15

FEZR2_C16           FEZR3_ETA           FE23ZR6(ST)





Ga-Ge

LIQUID                  Ga(S)                    Ge(S)



Ga-Hg

LIQUID(I-option)    Ga(S)



Ga-In

LIQUID                  TETRAGONAL_A6 Ga(S)



Ga-P

LIQUID                  Ga(S)                    P(S2)                    GAP(ST)



Ga-Pb

LIQUID(I-option)    FCC_A1                Ga(S)



Ga-Sb

LIQUID                  Ga(S)                    Sb(S)

GASB(ST)



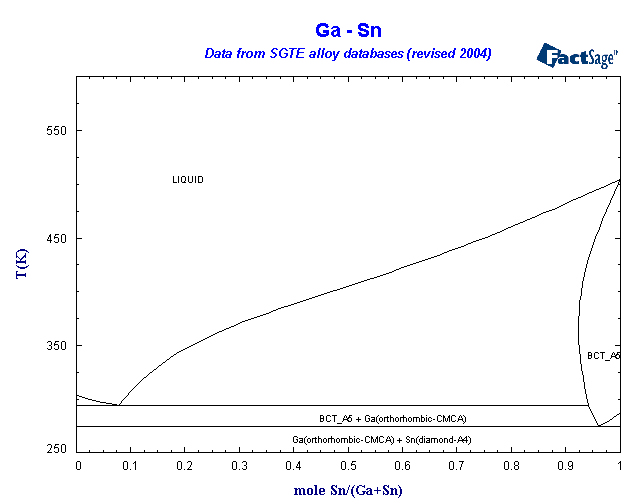

Ga-Sn

LIQUID                  BCT_A5                 Ga(S)                    Sn(S)



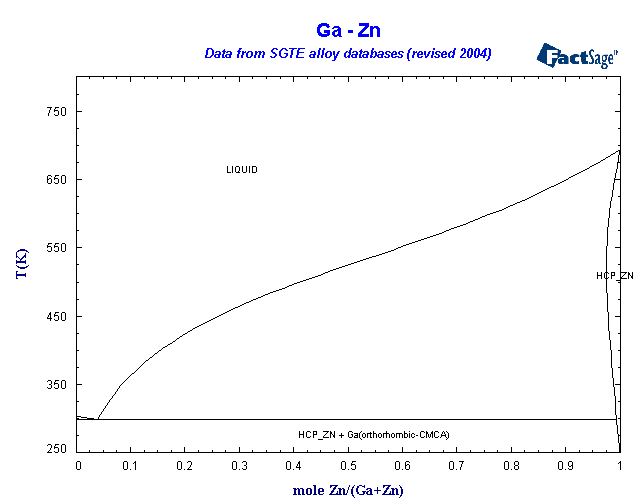

Ga-Zn

LIQUID                  HCP_ZN                Ga(S)



Gd-Mg

LIQUID                  BCC_A2                HCP_A3                CDMG(ST)             CDMG2(ST)

CDMG3(ST)           CDMG5(ST)



Ge-In

LIQUID                  Ge(S)                    In(S)



Ge-Pb

LIQUID                  Ge(S)                    FCC_A1



Ge-Sb

LIQUID                  Ge(S)                    RHOMBOHEDRAL_A7



Ge-Si

LIQUID                  DIAMOND_A4



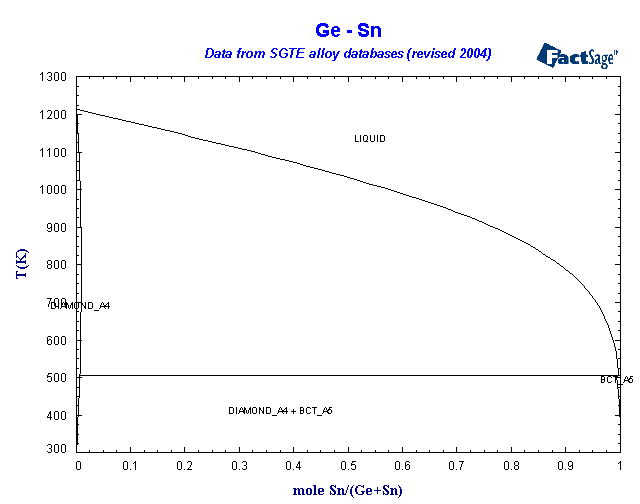

Ge-Sn

LIQUID                  BCT_A5                 DIAMOND_A4



Ge-Tl

LIQUID                  Ge(S)                    BCC_A2                HCP_A3



Ge-Zn

LIQUID                  Ge(S)                    HCP_ZN



Hf-Ta

LIQUID                  BCC_A2(I-option)  HCP_A3



Hf-Ti

LIQUID                  BCC_A2                HCP_A3



In-P

LIQUID                  In(S)                      P(S2)                    INP(ST)



In-Pb

LIQUID                  FCC_A1                TETRAGONAL_A6 TET_ALPHA1



In-Sb

LIQUID                  In(S)                      RHOMBOHEDRAL_A7                        INSB(ST)



In-Si

LIQUID                  In(S)                      Si(S)



In-Sn

LIQUID                  TETRAGONAL_A6 BCT_A5                Sn(S)

INSN_BETA           INSN_GAMMA



In-Zn

LIQUID                  TETRAGONAL_A6 HCP_ZN



K-Rb

LIQUID                  BCC_A2



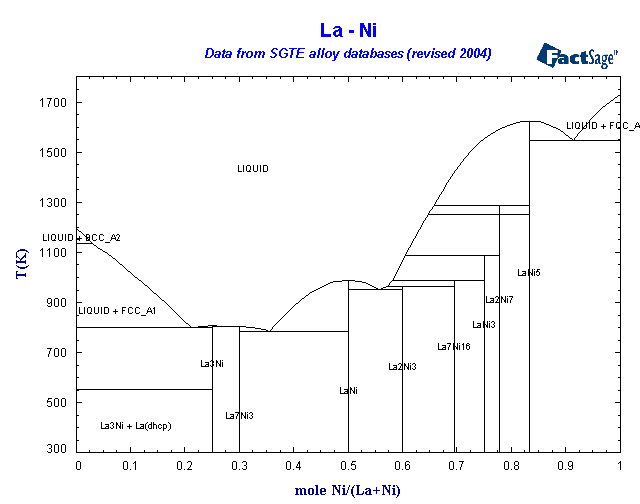

La-Ni

LIQUID                  FCC_A1                BCC_A2                La(S)                     LA3NI(ST)

LA7NI3(ST)            LANI(ST)                LA2NI3(ST)            LA7NI16(ST)          LANI3(ST)

LA2NI7(ST)            LANI5(ST)



Li-Mg

LIQUID                  BCC_A2                HCP_A3



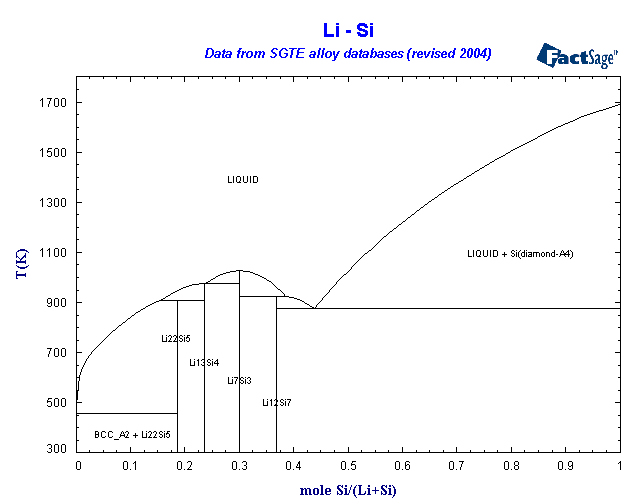

Li-Si

LIQUID                  BCC_A2                Si(S)                     LI22SI5(ST)

LI13SI4(ST)            LI7SI3(ST)              LI12SI7(ST)



Li-Zr

LIQUID(I-option)    BCC_A2                HCP_A3



Mg-Mn

LIQUID(I-option)    FCC_A1                BCC_A2                Mn(S2)                  CBCC_A12      HCP_A3



Mg-Ni

LIQUID                  FCC_A1                HCP_A3                LAVES_C36          MG2NI(ST)



Mg-Sc

LIQUID                  BCC_A2                HCP_A3                MGSC(ST)



Mg-Si

LIQUID                  Si(S)                     HCP_A3                MG2SI(ST)



Mg-Sn

LIQUID                  HCP_A3                Sn(S2)                  MG2SN(ST)



Mg-Y

LIQUID                  HCP_A3                BCC_A2                MG24Y5                MGY

MG2Y(ST)



Mg-Zn

LIQUID                  HCP_A3                HCP_ZN                LAVES_C14          MG51ZN20(ST)

MG12ZN13(ST)      MG2ZN3(ST)          MG2ZN11(ST)



Mg-Zr

LIQUID(I-option)    HCP_A3                BCC_A2



Mn-N

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                HCP_A3

MN4N(ST)             MN6N4(ST)            MN6N5(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



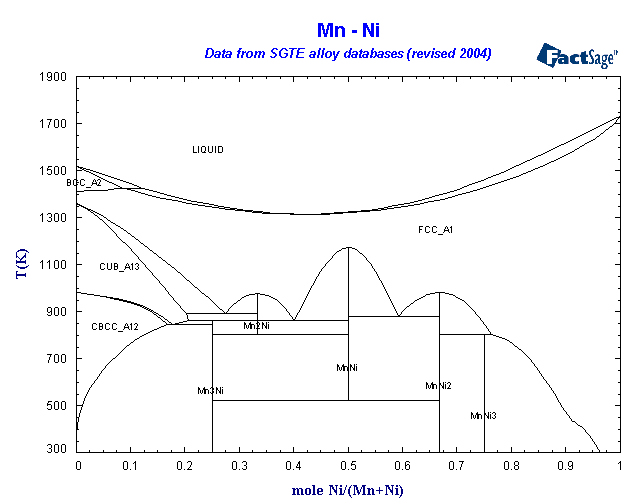

Mn-Ni

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                MN3NI(ST)

MN2NI(ST)             MNNI(ST)               MNNI2(ST)             MNNI3(ST)



Mn-P - data apply up to 0.52 mol fraction P only

LIQUID                  FCC_A1                BCC_A2                Mn(S)                    Mn(S2)

P(S2)                    MN3P(ST)              MN2P(ST)             MNP(ST)



Mn-Pb

LIQUID(I-option)    FCC_A1                Mn(S)                    Mn(S2)                  BCC_A2



Mn-Si

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                Si(S)

MN17SI3(ST)         MN33SI/(ST)          MN3SI(ST)             MN5SI3(ST)           MNSI(ST)

MN11SI19(ST)



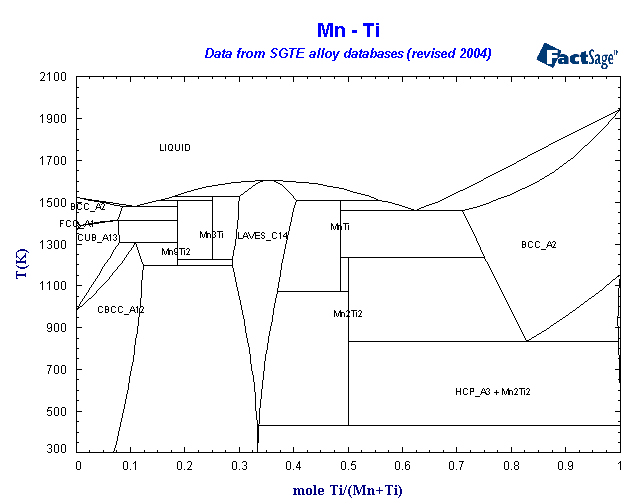

Mn-Ti

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                HCP_A3

LAVES_C14          MN9TI2(ST)            MN3TI(ST)             MN2TI2(ST)            MNTI(ST)



Mn-V

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                SIGMA



Mn-Zr

LIQUID                  FCC_A1                BCC_A2                HCP_A3                Mn(S)

Mn(S2)                  MN2ZR



Mo-N (T£3000K)

LIQUID                  BCC_A2                FCC_A1

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



Mo-Nb

LIQUID                  BCC_A2



Mo-Ni

LIQUID                  BCC_A2                FCC_A1                MONI_DELTA        MONI4(ST)            MONI3(ST)



Mo-P

LIQUID                  BCC_A2                P(S2)                    MO3P(ST)             MOP(ST)



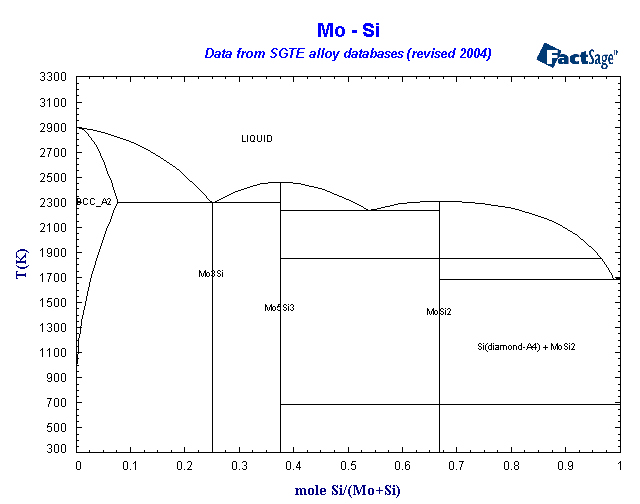

Mo-Si

LIQUID                  BCC_A2                Si(S)                     MO3SI(ST)             MO5SI3(ST)           MOSI2(ST)



Mo-Ti

LIQUID                  BCC_A2                HCP_A3



Mo-V

LIQUID                  BCC_A2



Mo-W

LIQUID                  BCC_A2





N-Nb

LIQUID                  FCC_A1                BCC_A2                HCP_A3                GAS



N-Ni

LIQUID                  FCC_A1                HCP_A3

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



N-Si

LIQUID                  Si(S)                     GAS                     SI3N4(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



N-Ta

LIQUID                  FCC_A1                BCC_A2                HCP_A3                TAN(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



N-Ti

LIQUID                  FCC_A1                HCP_A3                BCC_A2                NTI2(ST)                N2TI5(ST)

Ti4N3(ST)

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



N-V

LIQUID                  FCC_A1                HCP_A3                BCC_A2

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



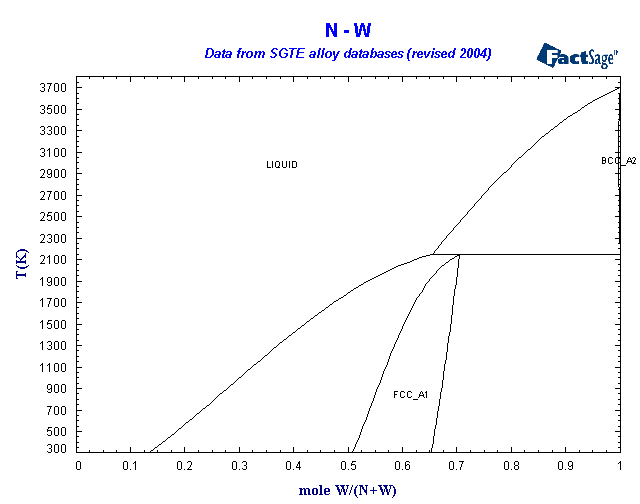

N-W

LIQUID                  FCC_A1                BCC_A2

(At high T and high N content the gas pressure may be very large.  For stable diagram also select GAS.)



Na-Rb

LIQUID                  BCC_A2(I-option)



Nb-Ni

LIQUID                  FCC_A1                BCC_A2                MU_NBNI              NI3NB



Nb-Sn

LIQUID                  BCC_A2                BCT_A5(ST)          NBSN                    NB6SN5                NBSN2(ST)



Nb-Ti

LIQUID                  BCC_A2                HCP_A3



Nb-V

LIQUID                  BCC_A2



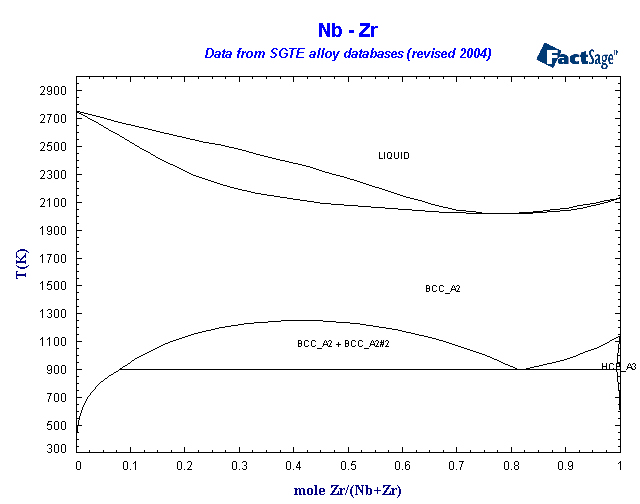

Nb-Zr

LIQUID                  BCC_A2(I-option)  HCP_A3



Nd-Pr

LIQUID                  BCC_A2                DHCP



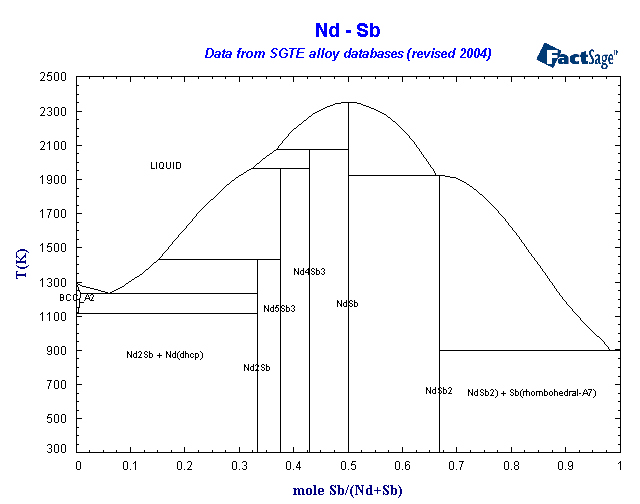

Nd-Sb

LIQUID                  BCC_A2                Nd(S)                    Sb(S)                    ND2SB(ST)

ND5SB3(ST)          ND4SB3(ST)          NDSB(ST)             NDSB2(ST)



Ni-P - data apply up to 0.46 mol fraction P only

LIQUID                  FCC_A1                NI3P(ST)               NI12P5(ST)            NI5P2(ST)              NI6P5(ST)

Ni2P(ST)



Ni-Pb

LIQUID(I-option)    FCC_A1







Ni-Si

LIQUID                  FCC_A1                Si(S)                     L12_FCC(I-option) TETA

NI3SI(ST)               NI5SI2(ST)             NI2SI(ST)               NI3SI2(ST)             NISI(ST)                NISI2(ST)



Ni-Ta

LIQUID                  FCC_A1                BCC_A2                NI3MOTA               NITA                     NITA2

NI8TA(ST)              NI2TA(ST)



Ni-Ti

LIQUID                  FCC_A1                BCC_A2                HCP_A3                TINI                       NI3TI(ST)

NITI2(ST)



Ni-V

LIQUID                  FCC_A1                BCC_A2                SIGMA                  NI3V(ST)               NI2V(ST)

NI2V7(ST)



Ni-W

LIQUID                  BCC_A2                FCC_A1                NI4W(ST)               NIW(ST)                NIW2(ST)





Ni-Zr

LIQUID                  FCC_A1                BCC_A2                HCP_A3                NI5ZR                    NI3ZR

NI10ZR7                NI7ZR2(ST)            NI3ZR(ST)              NI8ZR3(ST)            NI5ZR4(ST)            NIZR(ST)

NIZR2(ST)



P-Sb

LIQUID                  RHOMBOHEDRAL_A7                        P(S2)                    GAS



P-Si

LIQUID                  Si(S)                     P(S2)                    PSI(ST)



Pb-Pd

LIQUID                  FCC_A1                PD5PB3_B            PD5PB3_G            PD3PB                  PB2PD(ST)

PBPD(ST)             PB2PD3(ST)          PB3PD5(ST)



Pb-Sb

LIQUID                  FCC_A1                RHOMBOHEDRAL_A7



Pb-Si

LIQUID(I-option)    FCC_A1                Si(S)



Pb-Sn

LIQUID                  BCT_A5                 FCC_A1



Pb-Tl

LIQUID                  FCC_A1                BCC_A2                HCP_A3



Pb-Zn

LIQUID(I-option)    FCC_A1                HCP_ZN



Pb-Zr

LIQUID                  FCC_A1                BCC_A2                HCP_A3                ZRPB2(ST)

ZR5PB3(ST)          ZR4PB(ST)



Pr-Sb

LIQUID                  BCC_A2                Pr(S)                     Sb(S)                    PR2SB(ST)

PR5SB3(ST)          PR4SB3(ST)          PRSB(ST)             PRSB2(ST)



Sb-Si

LIQUID                  Sb(S)                    Si(S)





Sb-Sm

LIQUID                  BCC_A2                RHOMBOHEDRAL_A7                        SMSB2(ST)           SMSB(ST)

SM4SB3(ST)         SM5SB3(ST)          SM2SB(ST)



Sb-Sn

LIQUID                  RHOMBOHEDRAL_A7                        BCT_A5                 SB1SN1(I-option)

SB2SN3(ST)



Sb-Zn

LIQUID                  Sb(S)                    Zn(S)                     SBZN(ST)              SB3ZN4(ST)

SB2ZN3(ST)



Se-Te

LIQUID                  HXA8



Si-Sn

LIQUID                  DIAMOND_A4(I-option)                      Sn(S2)



Si-Ta

LIQUID                  BCC_A2                Si(S)                     SI2TA(ST)              SI3TA5(ST)

SITA2(ST)              SITA3(ST)



Si-Ti

LIQUID                  BCC_A2                HCP_A3                Si(S)                     SI3TI5

SI2TI(ST)               SI4TI5(ST)              SITI(ST)                 SITI3(ST)



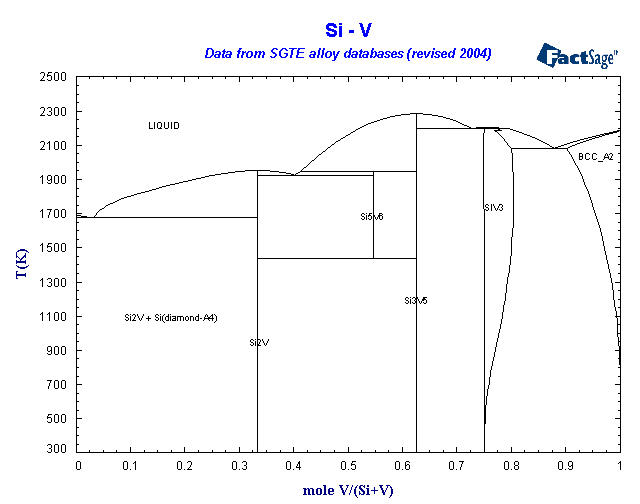

Si-V

LIQUID                  BCC_A2                Si(S)                     SIV3                      SI2V(ST)

SI5V6(ST)              SI3V5(ST)



Si-W

LIQUID                  BCC_A2                Si(S)                     SI2W(ST)               SI3W5(ST)



Si-Y

LIQUID                  BCC_A2                HCP_A3                Si(S)                     SI2Y(ST)

Si5Y3(ST)              SIY(ST)                 SI4Y5(ST)              SI3Y5(ST)



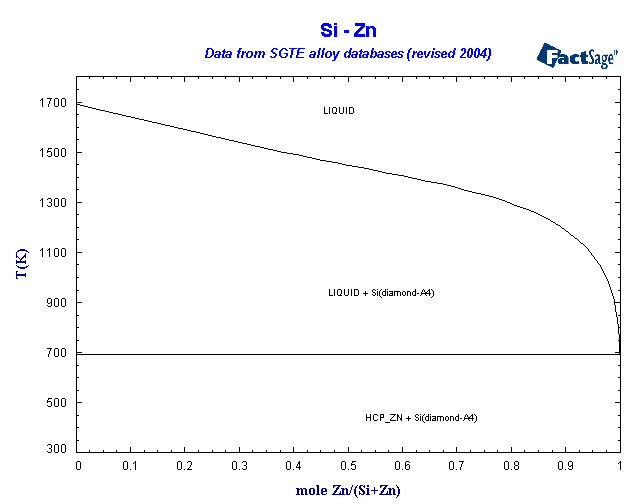

Si-Zn

LIQUID                  Si(S)                     HCP_ZN



Si-Zr

LIQUID                  BCC_A2                HCP_A3                Si(S)                     SI2ZR(ST)

SIZR(ST)               SI4ZR5(ST)            SI2ZR3(ST)            SIZR2(ST)              SIZR3(ST)              SI3ZR5(ST)



Sn-Ti

LIQUID                  BCC_A2                HCP_A3                BCT_A5                 SNTI3                    SN5TI6(ST)

SN3TI5(ST)            SNTI2(ST)



Sn-Zn

LIQUID                  BCT_A5                 HCP_ZN



Sn-Zr

LIQUID                  BCC_A2                HCP_A3                BCT_A5(ST)           SN2ZR(ST)

SN3ZR5(ST)          SNZR4(ST)



Ta-Ti

LIQUID                  BCC_A2                HCP_A3



Ti-V

LIQUID                  BCC_A2                HCP_A3





Ti-W

LIQUID                  BCC_A2(I-option)  HCP_A3



U-Zr

LIQUID                  BCC_A2(I-option)  HCP_A3                TETRAGONAL_U

ORTHORHOMBIC_CMCA                   DELTA_FEUZR



V-Zr

LIQUID                  BCC_A2(I-option)  HCP_A3



==================================================================================



Table 3:  List of phases for TERNARY systems



Assessed ternary parameters are available only for those phases listed in blue below. Thermodynamic values for other ternary phases listed are obtained from the relevant binaries by application of the particular model used in the database. Some of the tabulated phases are present only in the constituent binary systems.

Beware - if some ternary phases are unknown, or have not been included in the published assessments from which the present data have been selected, incorrect phase equilibria may be calculated.



Phases accompanied by ST in parenthesis indicate a stoichiometric phase. The phase must be selected from the SGTE compound base.



(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

(J-option) the phase displays 2 miscibility gaps or special ordering effects  and must be selected with the J-option.





Ag-Cu-Pb

LIQUID(I-option)    FCC_A1(J-option)



Al-C-Si

LIQUID                  FCC_A1                AL4C4SI(ST)          AL8C7SI(ST)          C(S)                      CSI(ST)

AL4C3(ST)             Si(S)



Al-Ca-Si

LIQUID                  FCC_A1                BCC_A2                AL2CA(ST)            AL4CA(ST)            CA2SI(ST)

CASI(ST)               CASI2(ST)             Si(S)                                                  AL2CASI2(ST)



Al-Ce-Nd

LIQUID                  FCC_A1                BCC_A2                AL11CE3(ST)         AL2CE(ST)

AL11CEND3L        AL11CEND3H        AL_CEND3L          AL3_CEND            AL_CEND              Nd(S)

Al11Nd3(ST)          AL2ND(ST)            ALND2(ST)



Al-Cu-Li

LIQUID                  BCC_A2                FCC_A1                ALCU_ETA            ALCU_EPSILON    ALLI

ALCU_THETA        GAMMA_D83         GAMMA_H            AL2CU3(ST)           AL9CU11(ST)         AL2LI3(ST)

AL2CULI(ST)          AL5CULI3(ST)        AL15CU8LI2(ST)    AL57CU11LI32(ST)



Al-Cu-Mg

LIQUID                  BCC_A2                FCC_A1                HCP_A3                ALCU_ETA

ALCU_EPSILON    ALCU_THETA        GAMMA_D83        GAMMA_H            AL2CU3(ST)

AL9CU11(ST)         ALMG_BETA         ALMG_EPS           ALMG_GAMMA     PHI

ALMG_GAMMA     AL140MG89(ST)     AL30MG23(ST)      LAVES_C15          CUMG2(ST)

AL2CUMG(ST)       AL7CU3MG6(ST)    AL5CU6MG2(ST)   ALMGZN_TAU       LAVES_C14

LAVES_C15          LAVES_C36







Al-Cu-Si

LIQUID                  BCC_A2                FCC_A1                ALCU_ETA            ALCU_EPSILON

ALCU_THETA        GAMMA_D83         GAMMA_H            AL2CU3(ST)           AL9CU11(ST)



Al-Cu-Zn

LIQUID                  BCC_A2                FCC_A1(I-option)  ALCU_ETA            ALCU_EPSILON

ALCU_THETA        GAMMA_D83         GAMMA_H            AL2CU3(ST)           AL9CU11(ST)

ALCUZN_T            HCP_ZN                HCP_A3                BCC_A2(I-option)  B2_BCC(I-option)

CUZN_GAMMA



Al-Fe-Mn

LIQUID                  FCC_A1                AL6MN                  AL11MN4              AL12MN                AL4MN

AL13FE4               AL8MN5_D810       AL2FE                  AL5FE2                 B2_BCC(I-option)  AL5FE4

BCC_A2                CBCC_A12            CUB_A13              HCP_A3



Al-Fe-Si

LIQUID                  FCC_A1                BCC_A2                ALFESI_ALPHA     AL2FESI(ST)         AL5FE4

AL3FESI(ST)         AL2FE2SI(ST)        AL14FE3SI3(ST)    AL11FE3SI6(ST)    AL13FE4

B2_BCC(I-option)  Si(S)                     FESI(ST)               FE2SI(ST)              FE5SI3(ST)            FESI2(ST)

FE3SI7(ST)



Al-Ga-In

LIQUID(I-option)    FCC_A1                ORTHORHOMBIC_CMCA(ST)             TETRAGONAL_A6(ST)



Al-Ga-Sn

LIQUID                  FCC_A1                ORTHORHOMBIC_CMCA(ST)             BCT_A5

Si(S)



Al-Li-Mg

LIQUID                  FCC_A1                BCC_A2                ALLI                      AL2LI3(ST)            AL4LI9(ST)

Al12MG17             AL53LI33MG14(ST)                             HCP_A3                ALMG_GAMMA

AL140MG89(ST)    AL30MG23(ST)



Al-Mg-Mn

LIQUID(I-option)    FCC_A1                HCP_A3                ALMG_GAMMA     AL140MG89(ST)

AL30MG23(ST)      AL18MG3MN2(ST) BCC_A2                CBCC_A12            CUB_A13

AL8MN5_D810       AL11MN4(ST)        AL12MN(ST)          AL4MN(ST)            AL6MN(ST)



Al-Mg-Si

LIQUID                  FCC_A1                HCP_A3                ALMG_GAMMA     AL140MG89(ST)

AL30MG23(ST)      Si(S)                     MG2SI(ST)



Al-Mg-Zn

LIQUID                  FCC_A1(I-option)  HCP_ZN                HCP_A3                TAU                      MG2ZN11

MG2ZN3                MGZN                   ALMG_BETA         ALMG_EPS           ALMG_GAMMA     PHI

V_PHAS               AL140MG89(ST)     AL30MG23(ST)      LAVES_C14          MG51ZN20(ST)

MG12ZN13(ST)      MG2ZN11



Al-Mn-Si

LIQUID                  ALMNSI_ALPHA    AL2MNSI3(ST)       ALMNSI_BETA      AL8MN5_D810       BCC_A2

CBCC_A12            CUB_A13              FCC_A1                HCP_A3                AL11MN4(ST)

AL12MN(ST)          AL4MN(ST)            AL6MN(ST)            Si(S)                     MN17SI3(ST)

MN33SI/(ST)          MN3SI(ST)             MN5SI3(ST)           MNSI(ST)               MN11SI19(ST)



Al-Si-Zn

LIQUID                  FCC_A1(I-option)  Si(S)                     HCP_ZN



Al-Sn-Zn

LIQUID                  FCC_A1(I-option)  BCT_A5                HCP_ZN







Al-Ta-Ti

LIQUID                  FCC_A1                BCC_A2                ALTA_SIGMA        AL3TA(ST)

AL69TA39(ST)       AL3TA2(ST)           AL7TA5(ST)           ALTA(ST)               HCP_A3                AL2TI(ST)

AL3M_DO22          ALTI(I-option)        ALM_D019(I-option)                           Al17TI8(ST)



Al-Ti-V

LIQUID                  BCC_A2                FCC_A1                HCP_A3                AL3M_DO22

ALTI(I-option)        ALM_D019(I-option)                           Al17TI8(ST)            AL2TI(ST)              AL10V(ST)

AL7V(ST)              AL23V4(ST)           AL3V(ST)              AL8V5(ST)



Al-Ti-W

LIQUID                  BCC_A2(I-option)  FCC_A1                HCP_A3                AL3M_DO22

ALTI(I-option)        ALM_D019(I-option)                           Al17TI8(ST)            AL2TI(ST)              AL12W(ST)

AL5W(ST)             AL4W(ST)              AL77W23(ST)        AL7W3(ST)            AL2W(ST)



Au-In-Pb

LIQUID                  FCC_A1                TETRAGONAL_A6(ST)                        HCP_A3

TET_ALPHA1        AUIN_ALPHA1       AU3IN(ST)             AU7IN2(ST)            AU3IN(ST)             AU7IN3(ST)

AU5IN3(ST)           AUIN(ST)               AUIN2(ST)             AU2PB(ST)            AUPB2(ST)            AUPB3(ST)



B-Fe-Nd

LIQUID                  B(S)                      BCC_A2                FCC_A1                BFE(ST)

BFE2(ST)              Nd(S)                    NDB66(ST)            NDB6(ST)              NDB4(ST)              ND2B5(ST)

FE17ND2(ST)        FE17ND5(ST)         FE14ND2B            FE2ND5B6            FE36ND10B36





Bi-Ga-Zn

LIQUID(I-option)    Bi(S)                     Ga(S)                    HCP_ZN



Bi-In-Pb

LIQUID                  FCC_A1                RHOMBOHEDRAL_A7                        HCP_A3

TETRAGONAL_A6 BIIN_EPS              BIIN(ST)                BI3IN5(ST)             BIIN2(ST)



C-Co-Cr

LIQUID                  BCC_A2                CEMENTITE          FCC_A1(I-option)  HCP_A3(I-option)  M23C6

M7C3                    C(S)                      C2CR3(ST)            SIGMA



C-Co-Fe

LIQUID                  BCC_A2                CEMENTITE          FCC_A1(I-option)  HCP_A3(I-option)

C(S)



C-Co-Ni

LIQUID                  BCC_A2                FCC_A1(I-option)  HCP_A3(I-option)  C(S)



C-Co-W

LIQUID                  BCC_A2                CEMENTITE          C(S)                      FCC_A1(I-option)

HCP_A3(I-option)  CO6W6C               M23C6                  M6C                      M7C3                    WC(ST) MU_PHASE                            CO3W(ST)



C-Cr-Fe

LIQUID                  BCC_A2(I-option)  CEMENTITE          KSI_CARBIDE       FCC_A1                HCP_A3

M23C6                  M7C3                    C(S)                      C2CR3(ST)            SIGMA



C-Cr-Mn

LIQUID                  BCC_A2                CEMENTITE          C(S)                      C2CR3(ST)            M23C6

M7C3                    CBCC_A12            CUB_A13              FCC_A1                HCP_A3                MN5C2(ST)

MN3C(ST)             HIGH_SIGMA         SIGMA                  CR3MN5(ST)



C-Cr-Mo

LIQUID                  BCC_A2(I-option)  CEMENTITE          FCC_A1                HCP_A3                MC_ETA

MOC(ST)               C(S)                      KSI_CARBIDE       M23C6                  M3C2                    M7C3



C-Cr-N

LIQUID                  BCC_A2                FCC_A1                HCP_A3                C(S)                      C2CR3(ST)

C3CR7(ST)            C6CR23(ST)



C-Cr-Ni

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CEMENTITE          M23C6

M7C3                    C2CR3(ST)            C(S)



C-Cr-V

LIQUID                  BCC_A2                M23C6                  M7C3                    FCC_A1                HCP_A3

CEMENTITE          M3C2                    C(S)                      V3C2(ST)               CR2VC2(ST)



C-Cr-W

LIQUID                  BCC_A2(I-option)  CEMENTITE          FCC_A1                HCP_A3

KSI_CARBIDE       M23C6                  M3C2                    M7C3                    C(S)                      WC(ST)



C-Cu-Fe

LIQUID                  BCC_A2                FCC_A1(I-option)  C(S)



C-Fe-Mn

LIQUID                  BCC_A2                CBCC_A12            CEMENTITE          CUB_A13              FCC_A1

HCP_A3                C(S)                      M23C6                  M5C2                    M7C3                    CBCC_A12

CUB_A13







C-Fe-Mo

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                HCP_A3

KSI_CARBIDE       M23C6                  M6C                      M7C3                    C(S)                      MC_ETA

MOC(ST)               MU_PHASE           R_PHASE             SIGMA                  FE2MO(ST)



C-Fe-N

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                FE4N                    FECN_CHI

HCP_A3                C(S)



C-Fe-Nb

LIQUID                  BCC_A2                CEMENTITE          FCC_A1(I-option)  HCP_A3

MU_PHASE          FE2NB(ST)            C(S)



C-Fe-Ni

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                HCP_A3                M23C6

M7C3                    C(S)                      L12_FCC(I-option)



C-Fe-Si

LIQUID                  BCC_A2                FCC_A1                HCP_A3                FE8SI2C

C(S)                      DIAMOND_A4        CSI(ST)                 B2_BCC(I-option)  FESI(ST)               FE2SI(ST)

FE5SI3(ST)            FESI2(ST)              FE3SI7(ST)



C-Fe-V

LIQUID                  BCC_A2                CEMENTITE          FCC_A1(I-option)  M23C6                  M7C3

C(S)                      HCP_A3                V3C2(ST)              SIGMA



C-Fe-W

LIQUID                  BCC_A2(I-option)  CEMENTITE          FCC_A1(I-option)  HCP_A3                WC(ST)

KSI_CARBIDE       M23C6                  M6C                      M7C3                    C(S)

MU_PHASE          FE2W(ST)



C-Mn-Si

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                HCP_A3

C(S)                      MN7C3(ST)            MN5C2(ST)            MN3C(ST)              MN20MN3C6(ST)

DIAMOND_A4        CSI(ST)                 MN17SI3(ST)         MN33SI/(ST)          MN3SI(ST)

MN5SI3(ST)           MNSI(ST)               MN11SI19(ST)



C-Mn-V

LIQUID                  CBCC_A12            BCC_A2                CUB_A13              FCC_A1                HCP_A3

C(S)                      MN7C3(ST)            MN5C2(ST)            MN3C(ST)              M23C6                  V3C2(ST)

SIGMA



C-Mo-V

LIQUID                  C(S)                      BCC_A2                HCP_A3                FCC_A1                MC_ETA

MOC(ST)               V3C2(ST)



C-Mo-W

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                HCP_A3                MOC(ST)

M3C2                    M7C3                    MC_ETA               MC_SHP               KSI_CARBIDE       WC(ST)

C(S)



C-Ni-Ti

LIQUID                  FCC                      BCC                      HCP_A3                TI2N

C(S)                      TINI                       NI3TI(ST)               NITI2



C-Ni-W

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                HCP_A3                M6C

C(S)                      WC(ST)                 NI4W(ST)              NIW(ST)                NIW2(ST)



Cd-Ga-In

LIQUID(I-option)    Ga(S)                    HCP_A3                TETRAGONAL_A6 CD3IN(ST)



Co-Cr-Mo

LIQUID                  BCC_A2(I-option)  FCC_A1(I-option)  HCP_A3(I-option)  SIGMA                  R_PHASE

P-PHASE              SIGMA                  MU_P                   CO3MO(ST)



Co-Cr-W

LIQUID                  BCC_A2(I-option)  FCC_A1(I-option)  HCP_A3(I-option)  MU_PHASE          R_PHASE

SIGMA                  CO3W(ST)



Co-Fe-N

LIQUID                  BCC_A2                FCC_A1                HCP_A3                CO4N(ST)              FE4N



Co-Fe-W

LIQUID                  FCC_A1                BCC_A2(I-option)  HCP_A3                MU_PHASE          R_PHASE

CO3W(ST)             FE2W(ST)



Co-Mo-Ni

LIQUID                  BCC_A2                FCC_A1                HCP_A3                MU_PHASE          R_PHASE

MONI_DELTA        MONI4(ST)             MONI3(ST)            SIGMA                  CO3MO



Co-Mo-W

LIQUID                  BCC_A2                FCC_A1                HCP_A3                MU_PHASE          R_PHASE

SIGMA                  CO3MO                 CO3W(ST)



Co-Ni-W

LIQUID                  FCC_A1                BCC_A2                HCP_A3                CO3W

MU_PHASE          R_PHASE             NI4W(ST)              NIW(ST)                NIW2(ST)



Cr-Fe-Mn

LIQUID                  FCC_A1                BCC_A2(I-option)  CBCC_A12            CUB_A13              SIGMA

HIGH_SIGMA        CR3MN5(ST)



Cr-Fe-Mo

LIQUID                  FCC_A1                BCC_A2(I-option)  HCP_A3                CHI_A12

MONI_DELTA        MU_PHASE           P_PHASE             R_PHASE             SIGMA                  FE2MO(ST)

LAVES_PHASE



Cr-Fe-N

LIQUID                  BCC_A2(I-option)  FCC_A1                HCP_A3                SIGMA

FE4N                    PI_PHASE(CR64FE36N20(ST))



Cr-Fe-Ni

LIQUID                  BCC_A2(I-option)  FCC_A1                SIGMA                  L12_FCC(I-option)



Cr-Fe-P

LIQUID                  FCC_A1                BCC_A2(I-option)  SIGMA                  P(S2)                    M2P

M3P                      FEP(ST)



Cr-Fe-V

LIQUID                  FCC_A1                BCC_A2(I-option)  SIGMA



Cr-Fe-W

LIQUID                  FCC_A1                BCC_A2(I-option)  SIGMA                  CHI_A12

MU_PHASE          LAVES_PHASE     R_PHASE             FE2W(ST)



Cr-Mn-N

LIQUID                  FCC_A1                BCC_A2                CBCC_A12            CUB_A13              SIGMA HIGH_SIGMA                            CR3MN5(ST)          HCP_A3                MN4N                    MN6N4(ST)            MN6N5(ST)



Cr-Mo-N

LIQUID                  BCC_A2(I-option)  FCC_A1                HCP_A3





Cr-Mo-Ni

LIQUID                  BCC_A2(I-option)  MU_PHASE          SIGMA                  MONI_DELTA        FCC_A1

P_PHASE             R_PHASE             MONI4(ST)            MONI3(ST)



Cr-Mo-W

LIQUID                  BCC_A2(I-option)  CHI_A12                MU_PHASE           R_PHASE

LAVES_PHASE



Cr-N-Ni

LIQUID                  BCC_A2                FCC_A1                HCP_A3

PI_PHASE(CR64NI36N20(ST))



Cr-N-Ti

LIQUID                  BCC_A2                FCC_A1                HCP_A3                LAVES_C14

LAVES_C15          NTI2(ST)                N2TI5(ST)              Ti4N3(ST)



Cr-N-V

LIQUID                  BCC_A2                FCC_A1                HCP_A3



Cr-N-W

LIQUID                  BCC_A2(I-option)  FCC_A1                HCP_A3



Cr-Ni-Ta

LIQUID                  BCC_A2                FCC_A1                LAVES_C14          LAVES_C15          MU-PHASE

NI3MOTA              NITA                      NITA2                    NI8TA(ST)              NI2TA(ST)



Cr-Ni-W

LIQUID                  BCC_A2(I-option)  FCC_A1                MU_PHASE           SIGMA                  R_PHASE

NI4W(ST)              NIW(ST)                NIW2(ST)



Cu-Fe-Ni

LIQUID                  BCC_A2                FCC_A1(I-option)  L12_FCC(I-option)



Cu-Fe-P

LIQUID                  BCC_A2                FCC_A1(I-option)  CU3P1                  FE3P1                  P(S2) FE2P(ST)    FEP(ST)



Cu-Mg-Zn

LIQUID                  BCC_A2(I-option) FCC_A1                 HCP_A3                HCP_ZN

LAVES_C14          LAVES_C15          LAVES_C36          MG2ZN11              MG2Zn3                MGZN

ALMG_BETA         ALMG_EPS           ALMG_GAMMA     PHI                       V_PHASE

CUZN_GAMMA      CUMG2(ST)           B2_BCC(I-option)  MG51ZN20(ST)      MG12ZN13(ST)

MG2ZN11(ST)



Fe-Dy-Tb

LIQUID                  Fe(S2)                   BCC_A2                HCP_A3                FE2DY(ST)            FEDY(ST)

FE23DY6(ST)        FE17DY2(ST)         FE17TB2(ST)         FE23TB6(ST)         FE3TB(ST)            FE2TB(ST)



Fe-Mn-N

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                HCP_A3

FE4N                    MN4N(ST)              MN6N4(ST)            MN6N5(ST)



Fe-Mn-Si

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                FE1SI1

FE5SI3                  HCP_A3                M3SI                     B2_BCC(I-option)  Si(S)

FE2SI(ST)             FESI2(ST)              FE3SI7(ST)            MN17SI3(ST)         MN33SI7(ST)

MN11SI19(ST)



Fe-Mn-V

LIQUID                  BCC_A2                CBCC_A12            CUB_A13              FCC_A1                SIGMA





Fe-Mo-N

LIQUID                  BCC_A2                FCC_A1                HCP_A3                MU_PHASE          R_PHASE

SIGMA                  FE2MO(ST)           FE4N



Fe-Mo-Ni

LIQUID                  BCC_A2                FCC_A1                MONI_DELTA        MU_PHASE          P_PHASE

R_PHASE             SIGMA                  FE2MO(ST)           L12_FCC(I-option) MONI_DELTA        MONI4(ST)

MONI3(ST)



Fe-Mo-P

LIQUID(I-option)    BCC_A2                FCC_A1                MU_PHASE           R_PHASE             SIGMA

FE2MO(ST)           M2P                      M3P                      FEP(ST)                P(S2)                    MO3P(ST)

MOP(ST)



Fe-Mo-V

LIQUID                  BCC_A2                FCC_A1                MU_PHASE           R_PHASE             SIGMA

FE2MO(ST)



Fe-Mo-W

LIQUID                  BCC_A2(I-option)  FCC_A1                MU_PHASE           R_PHASE             SIGMA

FE2MO(ST)           CHI_A12                LAVES_PHASE     FE2W(ST)



Fe-N-Nb

LIQUID                  BCC_A2                FCC_A1                HCP_A3                FE4N

MU_PHASE          FE2NB(ST)



Fe-N-Ni

LIQUID                  BCC_A2                FCC_A1                HCP_A3                FE4N

L12_FCC(I-option)



Fe-N-Ti

LIQUID                  BCC_A2                FCC_A1                HCP_A3                FE4N

LAVES_C14          FETI(ST)                NTI2(ST)                N2TI5(ST)              Ti4N3(ST)







Fe-N-V

LIQUID                  BCC_A2                FCC_A1                HCP_A3                SIGMA



Fe-N-W

LIQUID                  BCC_A2(I-option)  FCC_A1                HCP_A3                MU_PHASE          FE2W(ST)



Fe-Ni-P

LIQUID(I-option)    BCC_A2                FCC_A1                M2P                      M3P                      P(S2)

L12_FCC(I-option)FEP(ST)                 NI12P5(ST)            NI5P2(ST)              NI6P5(ST)



Fe-Ni-W

LIQUID                  BCC_A2(I-option)  FCC_A1                L12_FCC(I-option) MU_PHASE          SIGMA

FE2W(ST)             NI4W(ST)               NIW(ST)                NIW2(ST)



Fe-U-Zr

LIQUID                  FCC_A1(ST)          BCC_A2(I-option)  HCP_A3                ORTHORHOMB

TETRAGONAL       DELTA_FEUZR      FE2U                    FEU6                    LAVES_C15

FEZR2_C16           FEZR3_ETA           FE23ZR6(ST)         FE48U20ZR32(ST)

FE6U71ZR23(ST)   FE30U30ZR40(ST)



Ga-In-Sb

LIQUID                  TETRAGONAL_A6 ORTHORHOMBIC_CMCA(ST) RHOMBOHEDRAL_A7(ST) GASB(ST)             INSB(ST)                            ZINCBLENDE



Mo-Ni-W

LIQUID                  BCC_A2                FCC_A1                MONI_DELTA        MONI4(ST)            MONI3(ST)

MU_PHASE          SIGMA                  R_PHASE             NI4W(ST)               NIW(ST)                NIW2(ST)



Pb-Pd-Sn

LIQUID                  FCC_A1                PDSN3                  PDSN4



=================================================================================





Table 4:  List of phases for QUATERNARY systems



Assessed quaternary parameters are available only for those phases listed in blue below.

Thermodynamic values for other quaternary phases listed are obtained from the relevant binaries and ternaries by application of the particular model used in the database. Some of the tabulated phases are present only in the constituent binary and ternary systems.



Beware - if some ternary or quaternary phases are unknown, or have not been included in the published assessments from which the present data have been selected, incorrect phase equilibria may be calculated.



Phases accompanied by ST in parenthesis indicate a stoichiometric phase. The phase must be selected from the SGTE compound base.



(I-option) – the phase displays a miscibility gap or is an ordered phase; selection with the I-option required.

(J-option) the phase displays 2 miscibility gaps or special ordering effects and must be selected with the J-option.





C-Co-Cr-W

LIQUID                  BCC_A2(I-option)  FCC_A1(I-option)  M23C6                  HCP_A3(I-option) CEMENTITE          M7C3                            C(S)                      SIGMA                  CO6W6C

M6C                      WC(ST)                 MU_PHASE          CO3W(ST)             KSI_CARBIDE       M3C2

R_PHASE







C-Co-Fe-Ni

LIQUID                  BCC_A2                CEMENTITE          FCC_A1(I-option)  HCP_A3(I-option)

C(S)                      M23C6                  M7C3                    L12_FCC(I-option)



C-Co-Fe-W

LIQUID                  BCC_A2                CEMENTITE          FCC_A1(I-option)  HCP_A3(I-option)

C(S)                      M6C                      CO6W6C               M23C6                  M6C                      M7C3

WC(ST)                 MU_PHASE           CO3W(ST)             KSI_CARBIDE       FE2W(ST)



C-Co-Ni-W

LIQUID                  BCC_A2                FCC_A1(I-option)  HCP_A3(I-option)  C(S)

M6C                      CEMENTITE          CO6W6C               M23C6                  M7C3                    WC(ST) MU_PHASE                            CO3W(ST)             NI4W(ST)              NIW(ST)                NIW2(ST)



C-Cr-Fe-Mn

LIQUID                  BCC_A2(I-option)  CEMENTITE          KSI_CARBIDE       FCC_A1                HCP_A3

M23C6                  M7C3                    C(S)                      C2CR3(ST)            SIGMA                  CBCC_A12

CUB_A13              MN5C2(ST)            MN3C(ST)             HIGH_SIGMA         SIGMA                  M5C2

CR3MN5(ST)



C-Cr-Fe-Mo

LIQUID                  BCC_A2(I-option)  CEMENTITE          KSI_CARBIDE       FCC_A1                HCP_A3

M23C6                  M7C3                     C(S)                       C2CR3(ST)            SIGMA                   M6C MC_ETA               MOC(ST)                M3C2                     CHI_A12                MONI_DELTA

MU_PHASE          P_PHASE              R_PHASE             FE2MO(ST)            LAVES_PHASE



C-Cr-Fe-V

LIQUID                  BCC_A2(I-option)  CEMENTITE          KSI_CARBIDE       FCC_A1                HCP_A3

M23C6                  M7C3                    C(S)                      C2CR3(ST)           SIGMA                   V3C2(ST)



C-Cr-Fe-W

LIQUID                  BCC_A2(I-option)  CEMENTITE          KSI_CARBIDE       FCC_A1                HCP_A3

M23C6                  M7C3                    C(S)                       SIGMA                   M6C                   M3C2

WC(ST)                 MU_PHASE           FE2W(ST)             CHI_A12                LAVES_PHASE     R_PHASE



C-Cr-Mo-W

LIQUID                  BCC_A2(I-option)  CEMENTITE          FCC_A1                HCP_A3                MC_ETA

MOC(ST)               C(S)                      KSI_CARBIDE       M23C6                  M3C2                    M7C3

WC(ST)                 MC_ETA                MC_SHP               MU_PHASE           R_PHASE

LAVES_PHASE



C-Fe-Mn-V

LIQUID                  BCC_A2                CBCC_A12            CEMENTITE          CUB_A13              FCC_A1

HCP_A3                C(S)                      M23C6                  M5C2                    M7C3                    CBCC_A12

CUB_A13              SIGMA                  V3C2                    CBCC_A12            CUB_A13



C-Fe-Mo-V

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                HCP_A3

KSI_CARBIDE       M23C6                  M6C                      M7C3                    C(S)                      MC_ETA

MOC(ST)               MU_PHASE           R_PHASE             SIGMA                  FE2MO(ST)           V3C2(ST) MC_ETA                            MOC(ST)               FE2MO(ST)



C-Fe-Mo-W

LIQUID                  BCC_A2                CEMENTITE          FCC_A1                HCP_A3                WC(ST)

KSI_CARBIDE       M23C6                  M6C                      M7C3                    C(S)                        MC_ETA

MOC(ST)               MU_PHASE           R_PHASE             SIGMA                  FE2MO(ST)           FE2W(ST)

M3C2                    MC_SHP               CHI_A12                LAVES_PHASE



Cr-Fe-N-Ni

LIQUID                  BCC_A2(I-option)  FCC_A1                HCP_A3                SIGMA                  FE4N

PI                         L12_FCC(I-option)



C-Fe-Ni-W

LIQUID                  BCC_A2(I-option)  CEMENTITE          FCC_A1(I-option)  HCP_A3                M23C6

M7C3                    GRAPHITE(ST)      L12_FCC(I-option) M6C                      WC(ST)

KSI_CARBIDE       MU_PHASE           FE2W(ST)             NI4W(ST)               NIW(ST)                NIW2(ST)



C-Fe-V-W

LIQUID                  BCC_A2(I-option)  CEMENTITE          FCC_A1(I-option)  M23C6                  M7C3

GRAPHITE(ST)      HCP_A3                V3C2(ST)              SIGMA                  M6C                      WC(ST)

KSI_CARBIDE       MU_PHASE           FE2W(ST)





================================================================================
